Opis

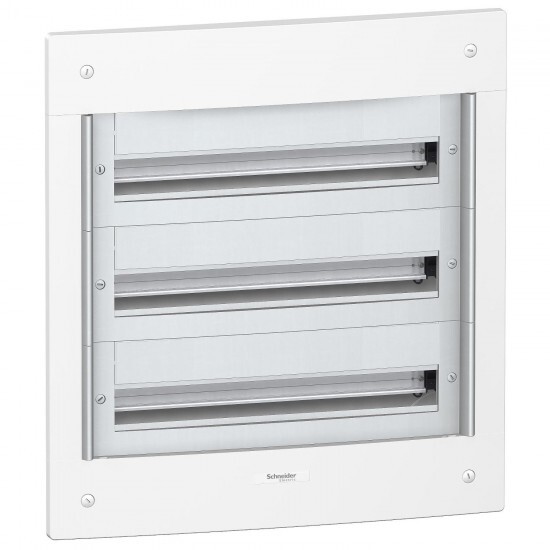

Pragma flush enclosure - IP40 - 3 x 24 modules - without door
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Pragma |
| Izdelek ali sestavni del | enclosure |
| Skupina izdelkov | Pragma |
| Provided equipment | 2 x terminal block 1 x identification label 1 x marking kit 1 x blanking plate strip |
| number of horizontal rows | 3 |
| enclosure type | distribution enclosure |
| type of front cover | without |
| depth | 30 mm outside: 95 mm wall: |
| number of 18 mm modules per row | 24 |
| width | 610 mm |
| height | 630 mm wall: 660 mm outside: |
| electrical insulation class | double insulation class II |
| Komplementarno | |
| 9 mm pitches | 48 |
| [Ui] Nazivna izolacijska trdnost | 400 V |
| colour | enclosure: white (RAL 9016) front face: grey (RAL 7004) |
| [In] rated current | 160 A |
| cable entry | side pre-cutouts removable plates cable or tube |
| enclosure material | back part: technoplastic front face: technoplastic back part: metal front face: metal |
| market segment | small commercial residential |
| number of terminal blocks | 1 earth (Quick) with 27 outgoers 1 neutral (Quick) with 29 outgoers |
| embedding depth | 95 mm |
| total number of 18 mm modules | 72 |
| internal depth | 93 mm |
| type of rail | Multifix |
| enclosure mounting | flush |
| distribution block outgoers | 2 x 25 mm² for earth 24 x 6 mm² for earth 1 x 50 mm² for earth 1 x 50 mm² for neutral 24 x 6 mm² for neutral 4 x 25 mm² for neutral |
| mounting plate description | without mounting plate |
| power dissipation in W | 90 W |
| targeted country | Russia Hungary Czech republic Greece |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| IP stopnja zaščite | IP30 without door IP40 with door |
| overvoltage category | II |
| IK stopnja zaščite | IK08 without door IK09 with door |
| Standardi | IEC 60670-1 IEC 60670-24 IEC 61439-1 IEC 61439-3 |
| fire resistance | back part: 650 °C front face: 650 °C |
| environmental characteristic | halogen free |
