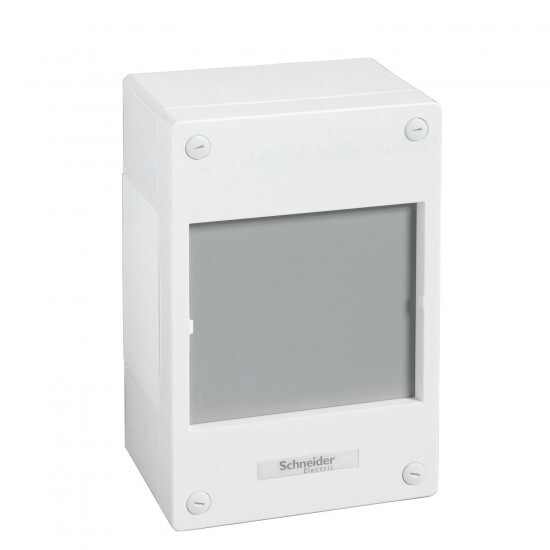

PRA06124 Schneider Electric
PRA06124 Schneider Electric
Opis
Pragma interface - for surface enclosure - 1 x 24 modules - without door
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Pragma |
| Izdelek ali sestavni del | enclosure |
| Skupina izdelkov | Pragma |
| Provided equipment | 1 x identification label 1 x plain plate per row 1 x front face and back connection |
| number of horizontal rows | 1 |
| enclosure type | interface |
| type of front cover | without |
| depth | 136 mm |
| number of 18 mm modules per row | 24 |
| width | 200 mm |
| height | 300 mm |
| electrical insulation class | class II double insulation |
| Komplementarno | |
| 9 mm pitches | 48 |
| [Ui] Nazivna izolacijska trdnost | 400 V |
| colour | enclosure: white (RAL 9016) front face: grey (RAL 7004) |
| [In] rated current | 125 A |
| cable entry | trunking cable or tube removable plates cut-out plates |
| enclosure material | back part: technoplastic front face: technoplastic back part: metal |
| market segment | residential small commercial |
| embedding depth | 0 mm |
| total number of 18 mm modules | 7 |
| internal depth | 120 mm |
| type of rail | without |
| enclosure mounting | surface |
| mounting plate description | without mounting plate |
| number of plates | 2 for plain plate |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| IP stopnja zaščite | IP30 without door IP40 with door |
| overvoltage category | II |
| IK stopnja zaščite | IK08 without door IK09 with door |
| Standardi | IEC 60670-1 IEC 60670-24 IEC 61439-1 IEC 61439-3 |
| fire resistance | back part: 750 °C front face: 750 °C |
