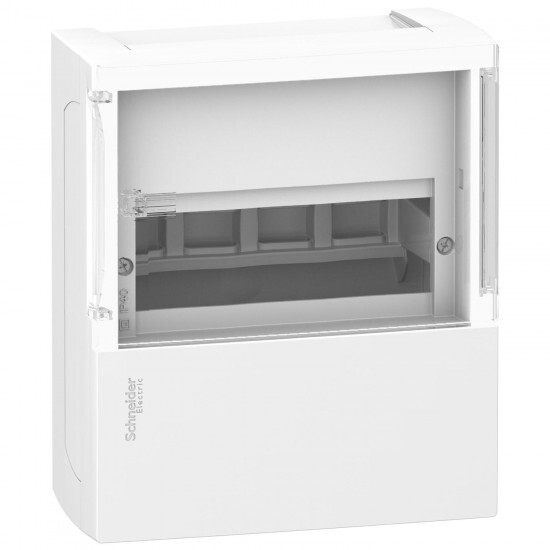

MIP12106S Schneider Electric
MIP12106S Schneider Electric
Opis
mini Pragma surface enclosure - 1 x 6 modules - smoked door
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Mini Pragma |
| Izdelek ali sestavni del | enclosure |
| Skupina izdelkov | Mini Pragma |
| number of horizontal rows | 1 |
| enclosure type | modular enclosure |
| type of front cover | smoked |
| depth | 95 mm outside: |
| number of 18 mm modules per row | 6 |
| width | 160 mm outside: |
| height | 198 mm outside: |
| embedding depth | 0 mm |
| Komplementarno | |
| 9 mm pitches | 12 |
| colour | front face: white (RAL 9003) door: smoked (RAL 9003) |
| [In] rated current | 63 A |
| cable entry | 1 bare flange 1 trunking flange |
| enclosure material | back part: technoplastic door: technoplastic front face: technoplastic |
| market segment | residential small commercial |
| number of terminal blocks | 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers |
| total number of 18 mm modules | 6 |
| internal depth | 74 mm |
| type of rail | 35 mm asymmetrical rail |
| enclosure mounting | surface |
| distribution block outgoers | 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral |
| mounting plate description | without mounting plate |
| terminal block function | earth / neutral |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| IP stopnja zaščite | IP40 |
| IK stopnja zaščite | IK07 |
| Standardi | IEC 60670-24 IEC 60439-3 IEC 60695-2-11 IEC 529 EN 50102 |
| fire resistance | door: 650 °C back part: 650 °C front face: 650 °C |
| quality labels | IMQ |
