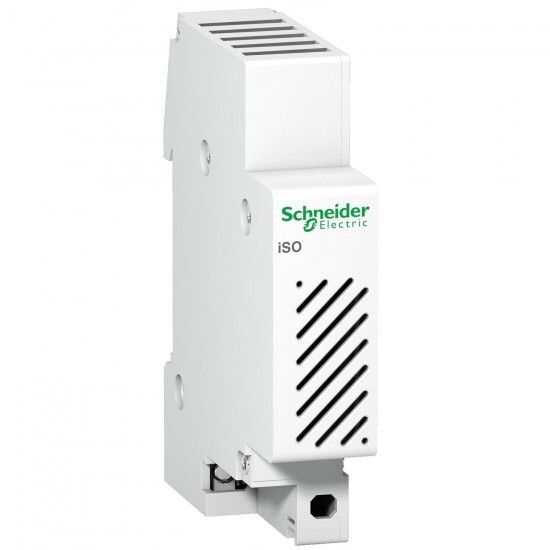

A9A15320 Schneider Electric
A9A15320 Schneider Electric
Opis
Acti 9 - iSO modular bell 230 V AC - 80 dB - 5 VA
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Acti 9 |
| Izdelek ali sestavni del | bell |
| product name | Acti 9 iSO |
| Skupina izdelkov | Acti 9 |
| Kratko ime naprave | iSO |
| Komplementarno | |
| Višina | 81 mm |
| mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| Teža izdelka | 77 g |
| wire stripping length | 12 mm for bottom connection |
| mounting mode | fixed |
| Širina | 18 mm |
| Globina | 72 mm |
| tightening torque | 1.3-1.3 N.m bottom |
| [Us] rated supply voltage | 230 V AC at 50/60 Hz |
| market segment | small commercial residential |
| power consumption in VA | 5 VA |
| auxiliary connection terminal | tunnel type terminalsrigid 4-4 mm² tunnel type terminalsflexible 4-4 mm² tunnel type terminalsflexible with ferrule 4-4 mm² |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-40 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -25-60 °C |
| noise level | 80 dB |
| type of sound | bell |
