A9C15410 Schneider Electric
A9C15410 Schneider Electric
Opis

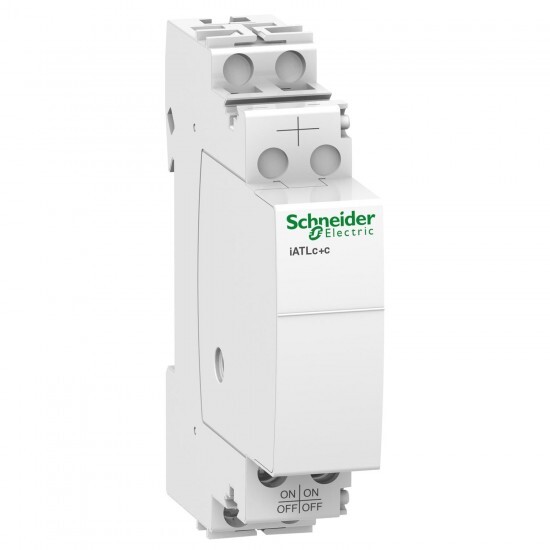

Acti 9 multi-level centralized control iATLc+c
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Acti 9 |
| Izdelek ali sestavni del | multilevel centralized control auxiliary |
| Skupina izdelkov | Acti 9 |
| Kratko ime naprave | iATLc+c |
| [Uc] Krmilna napetost | 24...240 V AC 50/60 Hz impulse |
| Komplementarno | |
| Višina | 86 mm |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| Povezave - terminali | tunnel type terminals0.5-4 mm² - rigid tunnel type terminals0.5-4 mm² - rigid - with cable end tunnel type terminals1-4 mm² - flexible tunnel type terminals1-4 mm² - flexible - with cable end |
| wire stripping length | 11 mm |
| [Ui] Nazivna izolacijska trdnost | 440 V |
| mounting mode | fixed |
| Kompatibilnostna koda | iATLc+c |
| colour | white |
| Širina | 18 mm |
| Globina | 71 mm |
| tightening torque | 1-1 N.m |
| range compatibility | Acti 9 iTL iTLc Acti 9 iTL iATLc Acti 9 iTL iATLc+s |
| market segment | residential small commercial |
| remote control type | 2 entries for switch |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-50 °C |
| tropicalisation | 2 |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| relative humidity | 95-95 % at 55-55 °C |
| overvoltage category | III |
| Standardi | EN/IEC 60669-2-2 |
