Opis

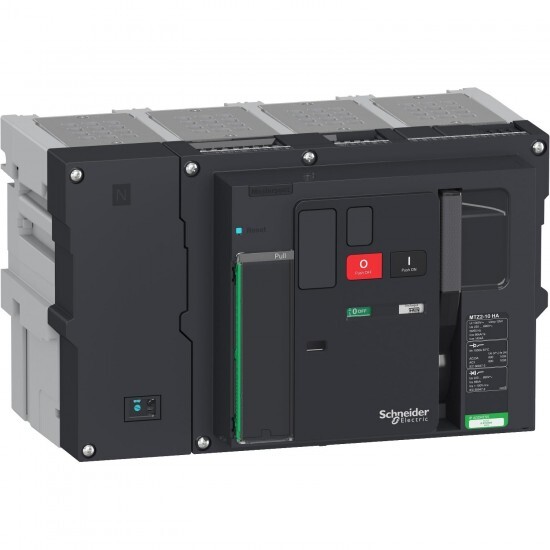

switch disconnector Masterpact MTZ2 10 HA, 1000 A, 4 poles, drawout
Tehnične lastnosti
| Glavno | |
| network type | AC |
| Izdelek ali sestavni del | switch disconnector |
| product name | Masterpact MTZ2 |
| Skupina izdelkov | Masterpact |
| Opis polov | 4P |
| Aplikacija naprave | distribution |
| Kratko ime naprave | MTZ2 10 HA |
| network frequency | 50/60 Hz |
| Združljivost serije/obsega | Masterpact Masterpact MTZ2 10 |
| switch-disconnector name | Masterpact MTZ2 10 HA |
| Komplementarno | |
| [Ics] rated service breaking capacity | 66 kA at 220...690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Višina | 439 mm |
| contact position indicator | yes |
| mounting support | chassis |
| control type | push-button |
| [Ui] Nazivna izolacijska trdnost | 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| mounting mode | drawout |
| electrical durability | AC-23A: 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-23A: 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| mechanical durability | 25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3 |
| Kompatibilnostna koda | MTZ2 10 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to EN/IEC 60947-3 |
| Širina | 556 mm |
| Globina | 403 mm |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 145 kA peak 220...690 V AC at 50/60 Hz |
| [Ie] rated operational current | 1000 A AC 50/60 Hz 690 V |
| breaking capacity | 66 kA Icu at 220...690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| breaking capacity code | HA |
| [Icw] rated short-time withstand current | 36 kA during 3 s conforming to EN/IEC 60947-3 66 kA during 1 s conforming to EN/IEC 60947-3 |
| connection pitch | 115 mm |
| visible break | no |
| utilisation category | AC-23A AC-3 |
| suitability for isolation | yes conforming to EN/IEC 60947-3 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP30 |
| Stopnja onesnaženosti | 3 conforming to EN/IEC 60947-4-1 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| Certifikati izdelkov | IECEE CB Scheme |
| Standardi | EN/IEC 60947-3 |
| net weight | 120 kg |
