LV430340 Schneider
LV430340 Schneider

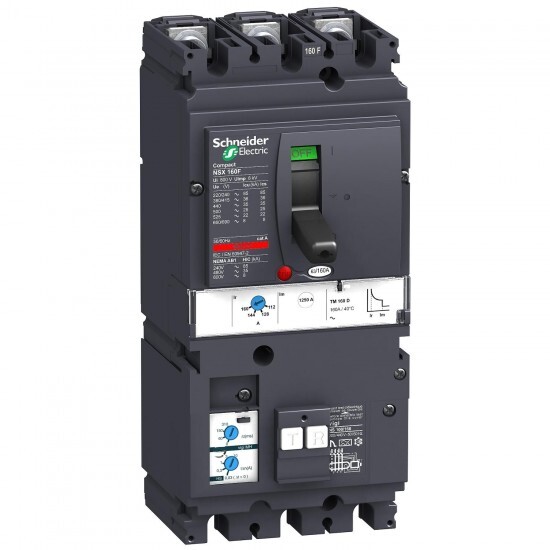

Opis
circuit breaker Vigicompact NSX 160B, 25 kA at 415 VAC, TM-D trip unit 160 A, add-on Vigi MH module, 3P 3d
Tehnične lastnosti
| Glavno | |
| [In] rated current | 160 A at 40 °C |
| Serija izdelka | NSX100...250 |
| network type | AC |
| breaking capacity code | B 25 kA 415 V AC |
| Izdelek ali sestavni del | circuit breaker with Vigi add-on |
| product name | Compact NSX |
| utilisation category | category A |
| Skupina izdelkov | Compact |
| breaking capacity | 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes conforming to EN 60947-2 yes conforming to IEC 60947-2 |
| Opis polov | 3P |
| Aplikacija naprave | distribution |
| Kratko ime naprave | VigiCompact NSX160B |
| trip unit technology | thermal-magnetic |
| network frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit name | TM-D |
| protected poles description | 3t |
| earth-leakage add-on module name | MH |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| pollution degree | 3 conforming to IEC 60664-1 |
| trip unit protection functions | LI |
| Komplementarno | |
| Višina | 236 mm |
| earth-leakage protection | with |
| mounting support | backplate |
| Teža izdelka | 2.2 kg |
| control type | toggle |
| mounting mode | fixed |
| electrical durability | 10000 cycles 440 V In/2 conforming to IEC 60947-2 15000 cycles 690 V In/2 conforming to IEC 60947-2 20000 cycles 440 V In conforming to IEC 60947-2 7500 cycles 690 V In conforming to IEC 60947-2 |
| mechanical durability | 40000 cycles |
| Kompatibilnostna koda | NSX160 |
| local signalling | positive contact indication |
| Širina | 105 mm |
| Globina | 86 mm |
| long time pick-up adjustment type Ir | adjustable |
| upside connection | front |
| downside connection | front |
| protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| connection pitch | 35 mm |
| earth-leakage protection class | class A |
| long time delay adjustment type | fixed |
| residual earth-leakage sensitity adjustment type | adjustable 5 settings |
| long time pick-up adjustment range | 0.7...1 x In |
| [IΔn] residual earth-leakage sensitive adjustment | 0.03-10 A |
| residual earth-leakage time delay adjustment type | adjustable 4 settings |
| trip unit rating | 160-160 A at 40 °C |
| [tr] long-time delay adjustment range | 120-400 s at 1.5 x In 15-15 s at 6 x Ir |
| short-time delay adjustment type | fixed |
| [Isd] short-time pick-up adjustment range | 1250 A |
| short-time pick-up adjustment type Isd | fixed |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -35-70 °C |
| IP stopnja zaščite | IP40 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -55-85 °C |
| overvoltage category | class II |
| IK stopnja zaščite | IK07 conforming to IEC 62262 |
| Certifikati izdelkov | CCC EAC Marine |
| Standardi | EN/IEC 60947 |
| electrical shock protection class | class II |
