XALK05 Schneider Electric
XALK05 Schneider Electric
Opis

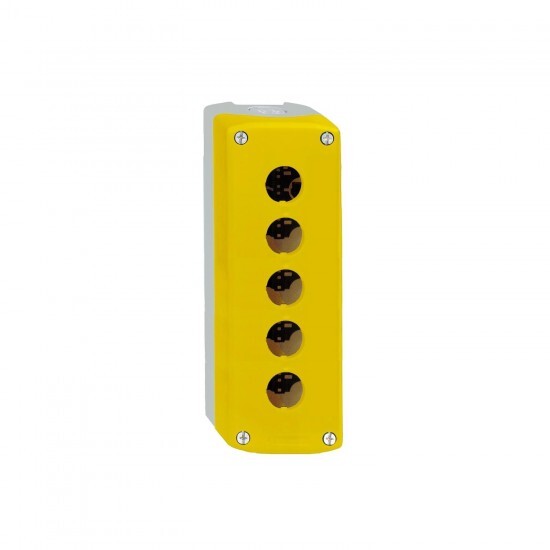

yellow empty enclosure lid with light grey base - 5 cut-outs
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XALK |
| Izdelek ali sestavni del | empty control station |
| Kratko ime naprave | XALK |
| product destination | for XB5 Ø 22 mm control and signalling units |
| Material | polycarbonate |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| cable entry | 2 knock-outs for cable entry, clamping capacity: 14-14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm |
| control station application | emergency stop function emergency switching off function |
| colour of cover | yellow (RAL 1021) |
| number of cut-out | 5 cut-outs |
| colour of base of enclosure | light grey (RAL 7035) |
| Komplementarno | |
| Teža izdelka | 0.322 kg |
| Kompatibilnostna koda | XALK |
| Odpornost proti visokotlačnemu čistilniku | 7000000 Pa at 55 °C, distance : 0.1 m |
| main group | 5 cut-outs |
| group of product | standard yellow |
| number of horizontal rows | 1 |
| assembly style | for customer assembly |
| number of vertical rows | 5 |
| mounting of block | rear mounting front mounting |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 60536 |
| IK stopnja zaščite | IK03 conforming to EN 50102 |
| Standardi | UL 508 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-5-5 CSA C22.2 No 14 JIS C8201-1 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Zaščitna obdelava | TH |
