03903 Schneider
03903 Schneider
Opis

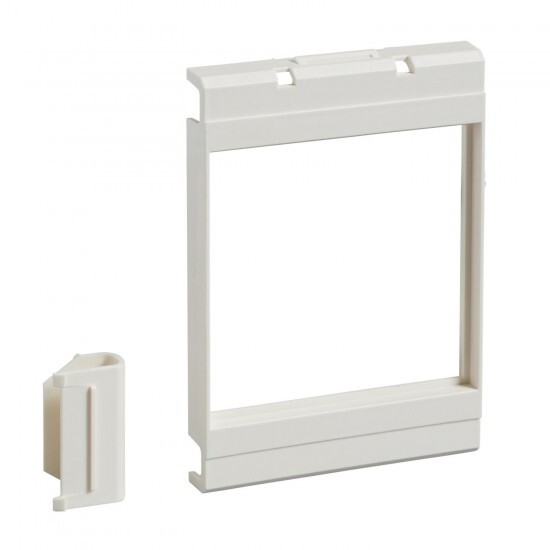

SUPPORT WITH 96X96 CUT-OUT FOR METERING DEV/P-BUTTON FOR FR.PL.03904/VISOR 03928
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma G Prisma P |
| Izdelek ali sestavni del | mounting plate |
| Skupina izdelkov | Prisma |
| Kategorija dodatkov/ločenih delov | installation accessory |
| Združljivost serije/obsega | Prisma G Prisma P |
| installed device | human-switchboard interface: 96 x 96 mm device Powerlogic: PM400...800 Enerlin'X: FDM121 |
| Komplementarno | |
| Teža izdelka | 0.04 kg |
| colour | white (RAL 9001) |
| Material | plastic |
| enclosure/cubicle description | floor-standing enclosure - width 600 mm wall-mounted enclosure - width 600 mm cubicle - width 400 mm depth 400 mm cubicle - width 650 mm depth 400 mm cubicle duct - width 300 mm depth 400 mm |
| number of vertical modules [50 mm] | 3 module(s): 96 x 96 mm device in 600 mm Widefloor-standing enclosure 3 module(s): FDM121 in 400 mm Widecubicle 3 module(s): PM400...800 in 600 mm Widefloor-standing enclosure 3 module(s): PM400...800 in 600 mm Widewall-mounted enclosure 3 module(s): PM400...800 in 650 mm Widecubicle 3 module(s): PM400...800 in 300 mm Widecubicle duct 3 module(s): PM400...800 in 400 mm Widecubicle 3 module(s): 96 x 96 mm device in 600 mm Widewall-mounted enclosure 3 module(s): 96 x 96 mm device in 650 mm Widecubicle 3 module(s): 96 x 96 mm device in 300 mm Widecubicle duct 3 module(s): 96 x 96 mm device in 400 mm Widecubicle 3 module(s): FDM121 in 600 mm Widefloor-standing enclosure 3 module(s): FDM121 in 600 mm Widewall-mounted enclosure 3 module(s): FDM121 in 650 mm Widecubicle 3 module(s): FDM121 in 300 mm Widecubicle duct |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure human-switchboard interface 96 x 96 mm device 4 3 400 mm 400 mm Prisma P cubicle Powerlogic 4 3 600 mm Prisma G floor-standing enclosure Enerlin'X FDM121 4 3 600 mm Prisma G wall-mounted enclosure Enerlin'X FDM121 4 3 650 mm 400 mm Prisma P cubicle Enerlin'X FDM121 4 3 300 mm 400 mm Prisma P cubicle duct Enerlin'X FDM121 4 3 400 mm 400 mm Prisma P cubicle Enerlin'X FDM121 4 3 600 mm Prisma G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 4 3 650 mm 400 mm Prisma P cubicle human-switchboard interface 96 x 96 mm device 4 3 300 mm 400 mm Prisma P cubicle duct human-switchboard interface 96 x 96 mm device 4 3 400 mm 400 mm Prisma P cubicle human-switchboard interface 96 x 96 mm device 4 3 600 mm Prisma G floor-standing enclosure Powerlogic 4 3 600 mm Prisma G wall-mounted enclosure Powerlogic 4 3 650 mm 400 mm Prisma P cubicle Powerlogic 4 3 300 mm 400 mm Prisma P cubicle duct Powerlogic 4 3 |
| Okolje | |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 |
