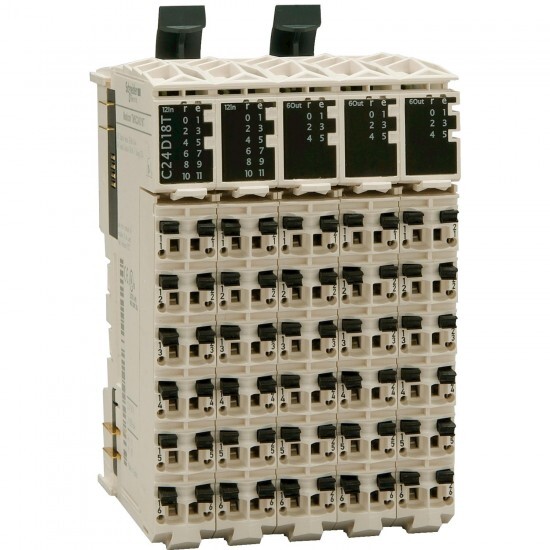

TM5C12D6T6L Schneider
TM5C12D6T6L Schneider
Opis
compact I/O expansion block TM5 - 24 I/0 - 12 DI - 6 DO transistor - 4 AI - 2 AO
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon TM5 |
| Izdelek ali sestavni del | compact I/O expansion block |
| Komplementarno | |
| local signalling | 5 LEDs (green)power supply: 5 LEDs (red)power supply: 8 LEDs (yellow)output status: 16 LEDs (green)input status: |
| colour | white |
| Poraba toka | 69 mA at 5 V DC bus 290 mA at 24 V DC |
| Prenapetostna vzdržljivost | 0.5 kV differential mode 24 V DC conforming to EN/IEC 61000-4-5 1 kV common mode 24 V DC conforming to EN/IEC 61000-4-5 |
| output voltage | 24 V DC |
| electrical connection | removable spring terminal block |
| maximum voltage drop | <0.3 V at 500 mA for output |
| Označevanje | CE |
| voltage state 0 guaranteed | <= 5 V |
| voltage state 1 guaranteed | >= 15 V |
| enclosure material | plastic |
| electromagnetic compatibility | EN/IEC 61000-4-6 |
| discrete output type | transistor |
| response time | <= 300 µs from state 0 to state 1 for output <= 300 µs from state 1 to state 0 for output |
| discrete input logic | sink |
| analogue output type | voltage/current |
| analogue input number | 4 |
| discrete output number | 6 |
| analogue output number | 2 |
| discrete input number | 12 |
| analogue input type | voltage/current |
| isolation | no insulation between channels 500 Vrms AC insulation between channel and bus |
| discrete output logic | source |
| discrete output current | 0.5 A per output |
| maximum leakage current | 5 µA (when switched off) for output |
| number of modules | digital input: 2 module(s) x 6 digital output: 1 module(s) x 6 analog input: 1 module(s) x 4 analog output: 1 module(s) x 2 |
| maximum power dissipation in W | 7.3 W |
| discrete input voltage | 24 V |
| discrete input current | 3.75 mA |
| input voltage limits | 20.4...28.8 V |
| input impedance | 6.4 kOhm |
| output voltage limits | 20.4...28.8 V DC |
| analogue input range | 0...20 mA +/- 10 V 4...20 mA |
| analogue input resolution | 12 bits + sign for voltage 12 bits for current |
| max current | 3000 mA loads on I/O power segment |
| discrete input voltage type | DC |
| wiring mode | 2-wire for discrete output 2-wire for discrete input |
| input filtering | <= 100 ms hardware <= 25 ms configurable by software |
| analogue output range | 0...20 mA +/- 10 V |
| analogue output resolution | 12 bits + sign voltage 12 bits current |
| input/output number | 24 |
| disturbance radiated/conducted | CISPR 11 |
| input/output number of splitter box | 16 I + 8 O |
| peak output current | 3 A |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-50 °C (vertical installation) -10-60 °C (horizontal installation) |
| IP stopnja zaščite | IP20 conforming to IEC 61131-2 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| relative humidity | 5-95 % without condensation |
| Nadmorska višina delovanja | 0...2000 m |
| Certifikati izdelkov | C-Tick CSA GOST-R cULus |
| Odpornost na elektromagnetna polja | 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3 |
| Standardi | CSA C22.2 No 213 IEC 61131-2 UL 508 CSA C22.2 No 142 |
| Odporno proti udarcu | 15 gn for 11 ms |
| Odpornost proti vibracijam | 1 gn at 8.4-150 Hz on DIN rail 3.5 mm at 5-8.4 Hz on DIN rail |
| Odpornost na elektrostatično razelektritev | 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 |
| Odpornost proti hitrim prehodnim pojavom | 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| net weight | 0.25 kg |
| mounting support | DIN rail |
| storage altitude | 0-3000 m |
