Opis

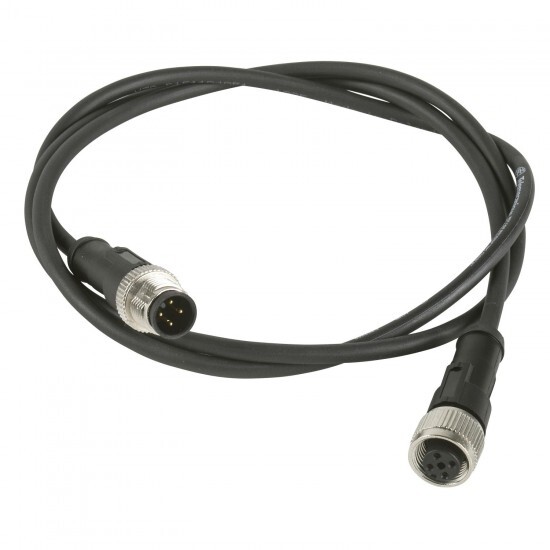

jumper cable XZ - male straight M12 3-pin - female elbowed M12 3-pin - PUR 1m
Tehnične lastnosti
| Glavno | |
| Kategorija dodatkov/ločenih delov | cabling accessory |
| accessory / separate part type | jumper cable |
| Komplementarno | |
| Teža izdelka | 0.065 kg |
| [Ue] rated operational voltage | 250 V AC 300 V DC |
| [In] rated current | 4 A |
| cable outer diameter | 5.2 mm |
| cable length | 1 m |
| maximum resistance across terminals | 5000 mOhm |
| wire insulation material | PUR |
| cable composition | 3 x 0.34 mm² |
| jumper cable end 2 | M12 female 3 pins elbowed connector with screw-on |
| insulation resistance | >= 1000 MOhm |
| jumper cable end 1 | M12 male 3 pins straight connector with screw-on |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -35-90 °C static -5-90 °C flexing |
| IP stopnja zaščite | IP69K IP65 IP67 |
| Temperatura okoliškega zraka za skladiščenje | -35-100 °C |
| Certifikati izdelkov | cULus |
