XGCS8901201 Schneider Electric
XGCS8901201 Schneider Electric
Opis

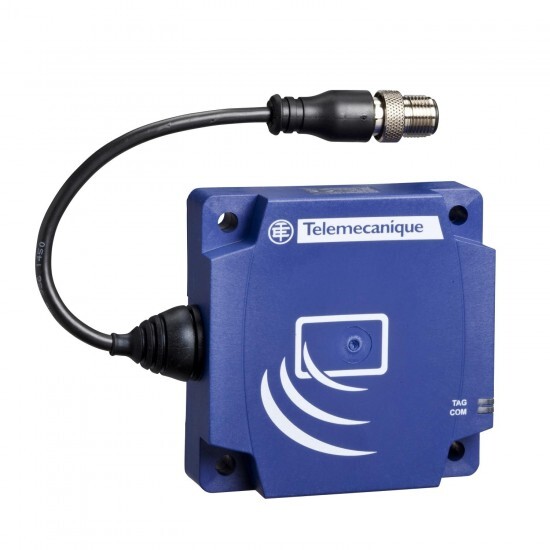

RFID compact smart antenna - 13.56MHz - flat form 80x80x26 - M12 - cable 0.2m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XG |
| Izdelek ali sestavni del | compact smart antenna |
| [Us] Nazivna napajalna npetost | 24 V DC conforming to Protective Extra Low Voltage |
| Združljivost izdelkov | RFID microchip STM (CRIX4K) RFID microchip Microelectronic (EM4135) RFID microchip Fujitsu (MB89R118 - MB89R119) RFID microchip INSIDE (micropass) RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) RFID microchip Texas (Tag-it HFI) |
| electrical connection | 5 pin(s)male remote connector M12, shielded cable cable 0.2 m |
| [Sn] nominal sensing distance | 20-100 mm |
| design | flat form 80 x 80 x 26 |
| transmission rate | 9600 bauds...115200 bauds (automatic detection) |
| outer dimension | 80 x 80 x 26 mm |
| RFID frequency | 13.56 MHz |
| RFID compact station name | XGCS |
| Komplementarno | |
| Teža izdelka | 0.257 kg |
| tightening torque | < 3 N.m |
| Poraba toka | < 60 mA |
| Omejitve napajalne napetosti | 19.2-29 V DC |
| Označevanje | CE |
| status LED | communication network: 1 LED (dual colour) RFID communication: 1 LED (dual colour) |
| communication port protocol | Modbus RTU Uni-Telway |
| communication port support | RS485 |
| associated tag type | ISO 14443 standard tags ISO 15693 standard tags automatic detection of the type of tag |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| IK stopnja zaščite | IK02 conforming to EN 50102 |
| Certifikati izdelkov | UL, FCC |
| Standardi | ETSI EN 301 489-3 ETSI EN 301 489-1 ETSI EN 300 330-1 ETSI EN 300 330-2 |
| Odporno proti udarcu | 30 gn for 11 ms conforming to EN 60068-2-27 |
| Odpornost proti vibracijam | 2 mm (f= 5-29.5 Hz) conforming to EN 60068-2-6 7 gn (f= 29.5-150 Hz) conforming to EN 60068-2-6 |
| Elektromagnetna kompatibilnost | electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2 electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2 electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4 electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4 susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5 conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6 magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8 |
