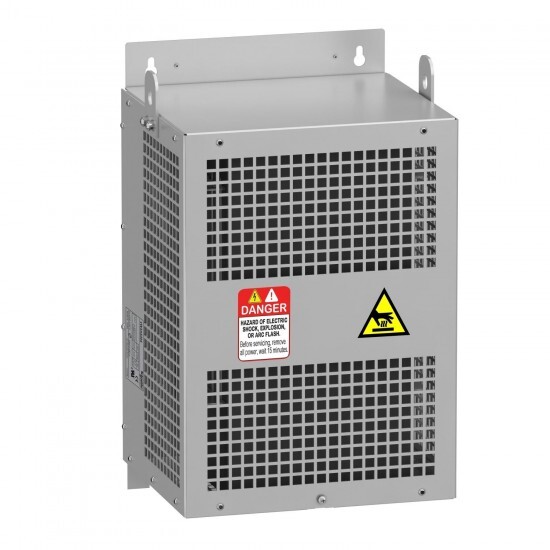

VW3A5304 Schneider Electric
VW3A5304 Schneider Electric
Opis
output dv/dt filter for variable speed drive - IP20
Tehnične lastnosti
| Glavno | |
| [In] rated current | 50 A |
| Izdelek ali sestavni del | dv/dt filter |
| Prodaja na nedeljivo količino | 1 |
| Združljivost izdelkov | ATV630 variable speed drive wall mount - 11 kW, 200...240 V ATV630 variable speed drive wall mount - 5.5 kW, 200...240 V ATV630 variable speed drive wall mount - 7.5 kW, 200...240 V ATV930 variable speed drive wall mount - 11 kW, 200...240 V ATV930 variable speed drive wall mount - 15 kW, 380...480 V ATV930 variable speed drive wall mount - 18.5 kW, 380...480 V ATV930 variable speed drive wall mount - 22 kW, 380...480 V ATV950 variable speed drive wall mount - 15 kW, 380...480 V ATV950 variable speed drive wall mount - 18.5 kW, 380...480 V ATV950 variable speed drive wall mount - 22 kW, 380...480 V ATV630 variable speed drive wall mount - 15 kW, 380...480 V ATV630 variable speed drive wall mount - 18.5 kW, 380...480 V ATV630 variable speed drive wall mount - 22 kW, 380...480 V ATV650 variable speed drive wall mount - 15 kW, 380...480 V ATV650 variable speed drive wall mount - 18.5 kW, 380...480 V ATV650 variable speed drive wall mount - 22 kW, 380...480 V ATV610 variable speed drive - 18.5 kW, 380...415 V ATV610 variable speed drive - 22 kW, 380...415 V |
| electrical connection | terminal block, connection capacity: 16 mm² / AWG 4 |
| product specific application | output filter |
| Združljivost serije/obsega | Altivar Process ATV900 Altivar Process ATV600 Easy Altivar 610 Altivar Machine ATV340 |
| Komplementarno | |
| Višina | 560 mm |
| Teža izdelka | 18 kg |
| Širina | 300 mm |
| Globina | 245 mm |
| ambient air temperature for operation | -10-50 °C (without current derating) 50-60 °C (with current derating 1.5 % per °C) |
| maximum output frequency | 100 Hz |
| dV/dt | 3000 V/µs max at 200...240 V 3000 V/µs max at 380...480 V |
| operating altitude | 0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| thermal losses | 65 W at 4 kHz |
| maximum motor cable length | 500 m unshielded cable at 4 kHz 300 m shielded cable at 4 kHz |
| Okolje | |
| IP stopnja zaščite | IP20 IP21 (with kit VW3A53903) |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
