VVD3 Schneider Electric
VVD3 Schneider Electric
Opis

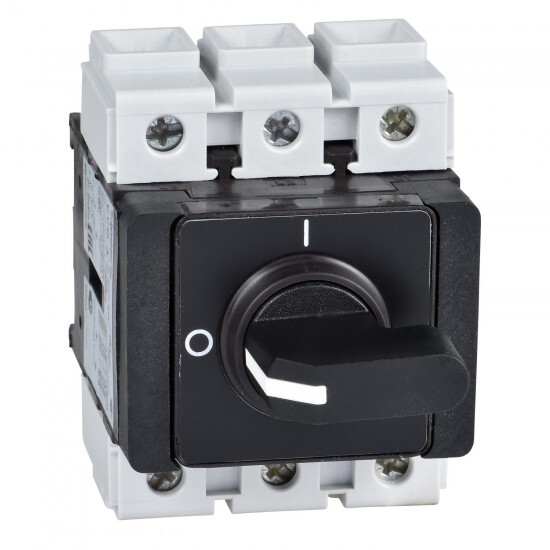

TeSys Vario - switch disconnector - 63 A - back of enclosure
Tehnične lastnosti
| Glavno | |
| network type | DC AC |
| Izdelek ali sestavni del | switch disconnector |
| product name | TeSys VARIO |
| Skupina izdelkov | TeSys |
| suitability for isolation | yes |
| Opis polov | 3P |
| Aplikacija naprave | preventive maintenance |
| Kratko ime naprave | VVD |
| contacts type and composition | 3 NO |
| control type | rotary handle |
| performance level | high performance |
| handle colour | black |
| handle front plate colour | black |
| rotary handle mounting style | direct |
| Komplementarno | |
| Višina | 83 mm |
| mounting support | switch: symmetrical rail switch: plate |
| Teža izdelka | 0.56 kg |
| Povezave - terminali | power circuit: screw clamp terminals25-25 mm² - solid power circuit: screw clamp terminals16-16 mm² - flexible - with cable end |
| electrical durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| mechanical durability | 30000 cycles |
| Kompatibilnostna koda | main switch disconnector |
| Širina | 60 mm |
| Globina | 110 mm |
| tightening torque | power circuit: 4-4 N.m - on screw clamp terminals |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| base dimension | 45 x 45 mm |
| [Ith] conventional free air thermal current | 63 A |
| [Icm] rated short-circuit making capacity | 2.1 kA at 400 V at Ipeak |
| [Ie] rated operational current | 41.5 A AC-23 Ue: 400 V |
| breaking capacity | 500 A at 400 V (AC-21A) 500 A at 400 V (AC-22A) 500 A at 400 V (AC-23A) |
| [Icw] rated short-time withstand current | 756 A at 400 V duration: 1 s |
| Označevanje | 0 - 1 |
| [Ithe] conventional enclosed thermal current | 50 A |
| Način pritrjevanja | by clips for switch by screws for switch |
| device composition | handle switch |
| making capacity | 630 A at 400 V AC-21A 630 A at 400 V AC-22A 630 A at 400 V AC-23A |
| rated operational power in W | 11 kW at 230...240 V (AC-3) 22 kW at 500 V (AC-3) 22 kW at 690 V (AC-23A) 30 kW at 500 V (AC-23A) 18.5 kW at 400...415 V (AC-3) 18.5 kW at 690 V (AC-3) 15 kW at 230...240 V (AC-23A) 22 kW at 400...415 V (AC-23A) |
| rated conditional short-circuit current | 10 kA at 400 V - associated fuse 63 A aM 10 kA at 400 V - associated fuse 63 A gG |
| rotary handle padlocking | without |
| intermittent duty class | 30 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-50 °C |
| IP stopnja zaščite | IP65 IP65 conforming to IEC 60529 |
| Certifikati izdelkov | CSA UL GL |
| Standardi | IEC 60947-3 |
| Zaščitna obdelava | TC |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| mechanical robustness | vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
