Opis

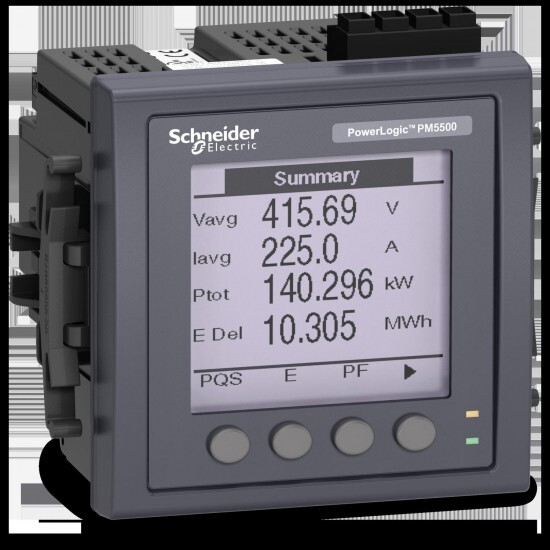

PM5560 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | power meter |
| product name | PowerLogic PM5000 |
| Skupina izdelkov | PowerLogic |
| Kratko ime naprave | PM5560 |
| market segment | buildings small building cost management: billing: main incomer buildings small building cost management: billing: sub feeder buildings medium building cost management: billing: main incomer buildings medium building cost management: billing: sub feeder buildings large building cost management: billing: main incomer buildings large building cost management: billing: sub feeder buildings multi-site cost management: billing: main incomer buildings multi-site cost management: billing: sub feeder datacenter cost management: billing: main incomer datacenter cost management: billing: sub feeder healthcare cost management: billing: main incomer healthcare cost management: billing: sub feeder industry cost management: billing: main incomer industry cost management: billing: sub feeder buildings small building cost management: cost allocation: main incomer buildings small building cost management: cost allocation: sub feeder buildings medium building cost management: cost allocation: main incomer buildings medium building cost management: cost allocation: sub feeder buildings large building cost management: cost allocation: main incomer buildings large building cost management: cost allocation: sub feeder buildings multi-site cost management: cost allocation: main incomer buildings multi-site cost management: cost allocation: sub feeder datacenter cost management: cost allocation: main incomer datacenter cost management: cost allocation: sub feeder healthcare cost management: cost allocation: main incomer healthcare cost management: cost allocation: sub feeder industry cost management: cost allocation: main incomer industry cost management: cost allocation: sub feeder buildings small building network management: main incomer buildings small building network management: sub feeder buildings medium building network management: main incomer buildings medium building network management: sub feeder buildings large building network management: sub feeder buildings multi-site network management: sub feeder datacenter network management: sub feeder healthcare network management: sub feeder industry network management: sub feeder |
| Komplementarno | |
| network frequency | 60 Hz 50 Hz |
| Višina | 96 mm |
| mounting support | framework |
| Teža izdelka | 450 g |
| Povezave - terminali | voltage circuit: screw terminal block4 control circuit: screw terminal block2 current transformer: screw terminal block6 RS485 link: screw terminal block4 digital input: screw terminal block8 digital output: screw terminal block4 Ethernet network: RJ45 connector2 |
| mounting mode | flush-mounted |
| Širina | 96 mm |
| Globina | 72 mm |
| product certifications | CE conforming to IEC 61010-1 cULus conforming to UL 61010-1 BTL |
| standards | EN 50470-3 IEC 61557-12 IEC 62053-22 IEC 62053-24 IEC 60529 EN 50470-1 UL 61010-1 ANSI C12.20 |
| [Us] rated supply voltage | 125...250 V DC 100...480 V AC 45...65 Hz |
| [In] rated current | 1 A 5 A |
| number of outputs | 2 digital |
| number of inputs | 4 digital |
| poles description | 3P + N 3P 1P + N |
| measurement accuracy | apparent power +/- 0.5 % frequency +/- 0.05 % active energy +/- 0.2 % reactive energy +/- 1 % active power +/- 0.2 % voltage +/- 0.1 % power factor +/- 0.05 % current +/- 0.15 °C |
| display type | backlit LCD |
| communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V JBUS Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V Ethernet Modbus TCP/IP daisy chain BACnet IP |
| analogue input type | voltage (impedance 5 MOhm) current (impedance 0.3 MOhm) |
| device application | gateway WAGES metering power monitoring multi-tariff |
| type of measurement | current voltage frequency power factor energy active and reactive power |
| Ethernet service | SNTP client SNMP-Traps |
| web services | alarm notification by e-mail diagnostic via predefined web pages web server real time viewing of data |
| communication port support | RS485 Ethernet |
| measurement voltage | 20-400 V AC 45...65 Hz between phase and neutral 20-690 V AC 45...65 Hz between phases |
| sampling rate | 128 samples/cycle |
| maximum power consumption in VA | 10 VA at 480 V |
| metering type | measured neutral current calculated ground current |
| measurement current | 5-10000 mA |
| frequency measurement range | 45-65 Hz |
| data recording | event logs maintenance logs min/max of instantaneous values data logs alarm logs time stamping |
| accuracy class | class 0.2S active energy conforming to IEC 62053-22 |
| memory capacity | 1.1 MB |
| communication gateway | Ethernet/serial |
| information displayed | tariff (8) |
| display resolution | 128 x 128 pixels |
| power quality analysis | up to the 63rd harmonic |
| ride-through time | 35 ms 120 V AC typical 129 ms 230 V AC typical |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 |
| Stopnja onesnaženosti | 2 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 50-50 °C |
| Nadmorska višina delovanja | 3000 m |
| Elektromagnetna kompatibilnost | limits for harmonic current emissions class A conforming to IEC 61000-3-2 conducted RF disturbances level 3 conforming to IEC 61000-4-6 magnetic field at power frequency level 4 conforming to IEC 61000-4-8 conducted and radiated emissions class B conforming to EN 55022 limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 surge immunity test level 4 conforming to IEC 61000-4-5 voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| compatibility code | PM5560 |
