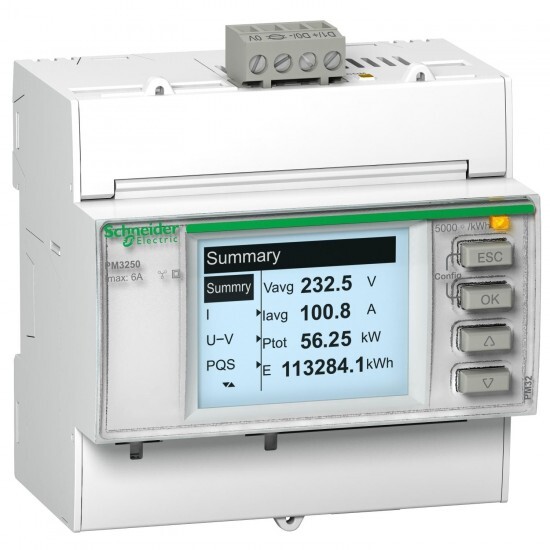

METSEPM3255 Schneider Electric
METSEPM3255 Schneider Electric
Opis
PM3255 power meter - 2 digital I - 2 digital O - RS485
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | power meter |
| product name | PowerLogic PM3000 |
| Skupina izdelkov | PowerLogic |
| Kratko ime naprave | PM3255 |
| market segment | buildings small building cost management: billing: sub feeder buildings medium building cost management: billing: sub feeder buildings large building cost management: billing: sub feeder buildings multi-site cost management: billing: sub feeder datacenter cost management: billing: sub feeder healthcare cost management: billing: sub feeder industry cost management: billing: sub feeder buildings small building cost management: cost allocation: sub feeder buildings medium building cost management: cost allocation: sub feeder buildings large building cost management: cost allocation: sub feeder buildings multi-site cost management: cost allocation: sub feeder datacenter cost management: cost allocation: sub feeder healthcare cost management: cost allocation: sub feeder industry cost management: cost allocation: sub feeder |
| Komplementarno | |
| network frequency | 60 Hz 50 Hz |
| Višina | 95 mm |
| mounting support | DIN rail |
| Teža izdelka | 0.26 kg |
| mounting mode | clip-on |
| Širina | 90 mm |
| Globina | 70 mm |
| product certifications | CE conforming to EN 61010-1 cULus conforming to UL 61010-1 UL |
| standards | IEC 61557-12 EN 50470-3 EN 61557-12 EN 50470-1 EN 61010-1 UL 61010-1 IEC 62052-11 |
| [Us] rated supply voltage | 100...277 V AC 45...65 Hz 173...480 V AC 45...65 Hz 100...300 V DC |
| [In] rated current | 5 A 1 A |
| number of outputs | 2 digital (static) |
| number of inputs | 2 digital 0...4 mA 11...40 V DC |
| market segment | small commercial residential |
| poles description | 3P 3P + N 1P + N |
| power consumption in VA | 5 VA |
| measurement accuracy | current 0.3 % 0.5...6 A current 0.5 % 0.1...1.2 A voltage 0.3 % 50...330 V voltage 0.3 % 80...570 V |
| display type | backlit LCD |
| communication port protocol | Modbus at 9.6...38.4 kbauds |
| analogue input type | current 0...5 A current 0...1 A |
| device application | multi-tariff power monitoring sub billing |
| type of measurement | active and reactive power apparent power current voltage energy power factor frequency total current harmonic distortion THD (I) total voltage harmonic distortion THD (U) |
| communication port support | RS485 |
| measurement voltage | 50-330 V AC 45...65 Hz direct 50-330 V AC 45...65 Hz phase to neutral 80-570 V AC 45...65 Hz direct 80-570 V AC 45...65 Hz phase to phase 570-999000 V AC 45...65 Hz with external VT |
| sampling rate | 32 samples/cycle |
| measurement current | 0.02-1.2 A 0.05-6 A |
| frequency measurement range | 45-65 Hz |
| data recording | energy consumption logs 15 alarms power logs time stamping min/max of instantaneous values |
| accuracy class | class 0.5S active energy conforming to IEC 62053-22 class 1 active energy conforming to IEC 62053-21 class 2 reactive energy conforming to IEC 62053-23 class C active energy conforming to EN 50470-3 |
| memory capacity | 512 kB |
| information displayed | tariff (4) |
| display resolution | 128 x 96 pixels |
| power quality analysis | up to the 15th harmonic |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
| Stopnja onesnaženosti | 2 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 50-50 °C |
| overvoltage category | III |
| Nadmorska višina delovanja | 0...3000 m |
| Elektromagnetna kompatibilnost | electrostatic discharge level 4 conforming to IEC 61000-4-2 susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test level 4 conforming to IEC 61000-4-5 conducted RF disturbances level 3 conforming to IEC 61000-4-6 magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8 conducted and radiated emissions class B conforming to EN 55022 |
| compatibility code | PM3255 |
