Opis

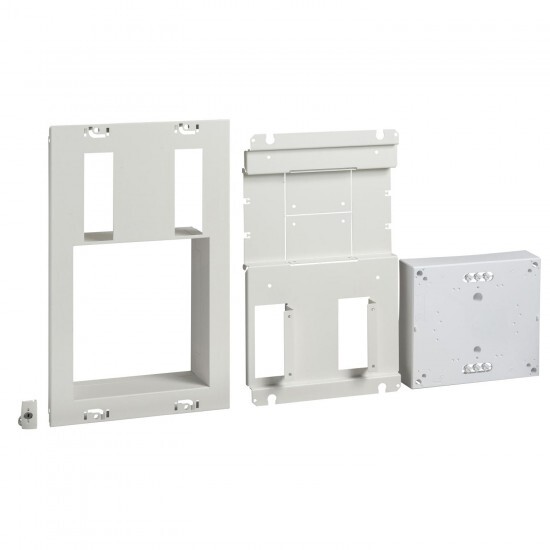

PANEL KIT CLASS 2 TARIF CONTROL 1P/3P WIDTH 600/650
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma G |
| Izdelek ali sestavni del | incoming kit |
| Skupina izdelkov | Prisma |
| Opis polov | 1 x 1P + N: mounting plate support: DB 90 vertical installation |
| Kategorija dodatkov/ločenih delov | installation accessory |
| IP degree of protection | IP30 |
| Združljivost serije/obsega | Pack 160 Prisma G |
| installed device | Resi9: by screws DB 90 - control: toggle - vertical installation relay |
| type of front plate | cut-out |
| Komplementarno | |
| Višina | 300 mm |
| Teža izdelka | 4.18 kg |
| colour | white (RAL 9001) |
| product certifications | ASEFA |
| standards | IEC 61439-1 IEC 61439-2 |
| Material | steel |
| surface finish | smooth matt |
| quantity per set | set of 1 |
| enclosure/cubicle description | floor-standing enclosure - width 600 mm wall-mounted enclosure - width 600 mm Pack enclosure - width 555 mm |
| number of vertical modules [50 mm] | 6 |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure Resi9 DB 90 by screws toggle vertical 1P + N 1 50 mm 600 mm Prisma G wall-mounted enclosure Resi9 DB 90 by screws toggle vertical 1P + N 1 50 mm 600 mm Prisma G floor-standing enclosure relay 50 mm 600 mm Prisma G wall-mounted enclosure relay 50 mm 555 mm Pack 160 Pack enclosure relay 125 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 40 °C |
| IK stopnja zaščite | IK07 conforming to EN/IEC 62262 |
