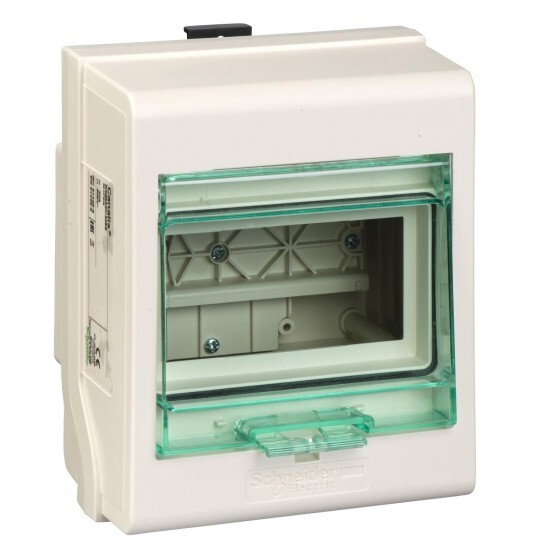

KNB32CM55 Schneider Electric
KNB32CM55 Schneider Electric
Opis
TAPOFF UNIT 32A FOR MODULAR EQUIPMENT
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Canalis |
| Izdelek ali sestavni del | tap-off unit |
| Skupina izdelkov | Canalis |
| protection type | circuit breaker: miniature circuit breaker (MCB) |
| [Ie] rated operational current | 32-32 A |
| Združljivost izdelkov | Canalis KN busbar trunkingplug-in |
| colour | white (RAL 9001) |
| Združljivost serije/obsega | KN busbar trunking |
| mounting mode | plug-in with fixed polarity |
| tap-off unit polarity | 3L+N+PE |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 165 mm |
| Teža izdelka | 0.6 kg |
| [Ui] Nazivna izolacijska trdnost | 400 V depending on protective device 500 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 4.6 kV |
| Širina | 135 mm |
| Globina | 95 mm |
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| standards | IEC 61439-6 IEC 61439-1 |
| door opening side | front |
| electrical connection | pre-wired terminal block - ISO32 6-6 mm² flexible pre-wired terminal block - ISO32 10-10 mm² rigid |
| provided equipment | circuit breaker to be ordered separately blanking plate |
| function available | circuit breaker |
| device application | low power distribution |
| tap-off unit disconnection mode | By drawing out |
| 18 mm pitches | 5 |
| Okolje | |
| IP stopnja zaščite | IP55 conforming to IEC 60529 |
| IK stopnja zaščite | IK08 conforming to IEC 62262 |
| earthing system | TT TN-S IT |
