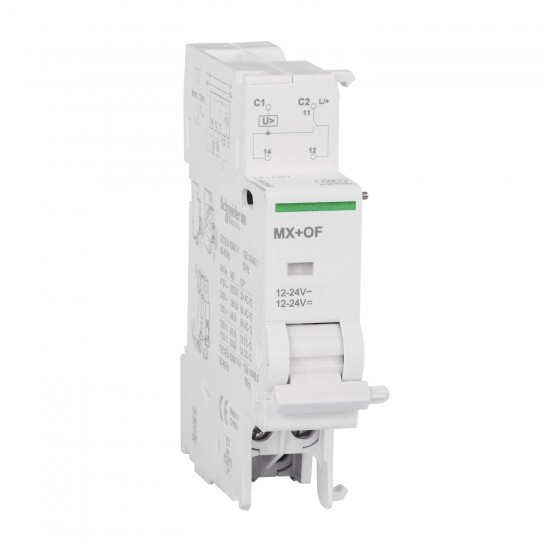

A9N26948 Schneider Electric
A9N26948 Schneider Electric
Opis
MX Shunt Trip MX plus 1 OF 24Vac dc
Tehnične lastnosti
| Glavno | |
| Serija izdelka | C60 Clario DPN Vigi Librio ProDis C120 DPN ID |
| Izdelek ali sestavni del | shunt trip release with OC contact |
| Skupina izdelkov | Prodis Librio Acti 9 Clario |
| Kratko ime naprave | MX + OF |
| [Uc] Krmilna napetost | 12...24 V AC 50/60 Hz 12...24 V DC |
| Združljivost izdelkov | C40 C120 DT60 DT40 ITG40 C60 iDPN IDc DPN Vigi ID C40 |
| signal contacts composition | 1 C/O |
| 9 mm pitches | 2 |
| Komplementarno | |
| Višina | 82.5 mm |
| mounting support | 35 mm symmetrical DIN rail |
| Teža izdelka | 65 g |
| Povezave - terminali | clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible |
| wire stripping length | 9 mm |
| mounting mode | fixed |
| Kompatibilnostna koda | MX + OF |
| local signalling | action indicator |
| colour | white |
| Širina | 18 mm |
| Globina | 73.5 mm |
| tightening torque | 1-1 N.m |
| range compatibility | Acti 9 iDPN Acti 9 C120 Acti 9 C40 Acti 9 C60H-DC Acti 9 C60NA-DC Acti 9 C60PV-DC Acti 9 DPN Vigi Acti 9 DT40 Acti 9 DT60 Acti 9 ID C40 Acti 9 IDc Acti 9 ITG40 Acti 9 ID Acti 9 DPN |
| market segment | residential small commercial |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-50 °C |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % at 55-55 °C |
| Certifikati izdelkov | ASTA LCIE KEMA ASEFA |
| Standardi | EN/IEC 60947-5-1 |
