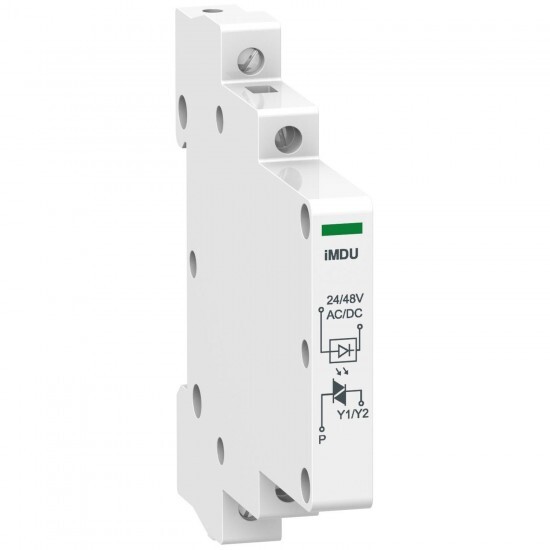

A9C18195 Schneider Electric
A9C18195 Schneider Electric
Opis
iMDU 24-48V AC or DC voltage adaption module
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Reflex iC60 iC60 |
| Izdelek ali sestavni del | voltage adaptor |
| Skupina izdelkov | Acti 9 |
| Kratko ime naprave | iMDU |
| Komplementarno | |
| Višina | 78 mm |
| mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 1 |
| Teža izdelka | 53 g |
| wire stripping length | 6 mm |
| [Ui] Nazivna izolacijska trdnost | 500 V |
| mounting mode | fixed |
| Kompatibilnostna koda | iMDU |
| colour | white |
| Širina | 9 mm |
| Globina | 74 mm |
| tightening torque | 1-1 N.m |
| [Uc] control circuit voltage | 24...48 V AC/DC |
| range compatibility | Acti 9 RCA Acti 9 Reflex iC60 |
| market segment | small commercial |
| auxiliary connection terminal | tunnel type terminalsrigid 1.5-1.5 mm² tunnel type terminalsflexible 1.5-1.5 mm² tunnel type terminalsflexible with ferrule 1.5-1.5 mm² |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| tropicalisation | 2 |
| IP stopnja zaščite | IP20 conforming to IEC 60529 IP40 in modular enclosure (Insulation class II) conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-80 °C |
| relative humidity | 95-95 % at 55-55 °C |
