A9C66425 Schneider Electric
A9C66425 Schneider Electric
Opis

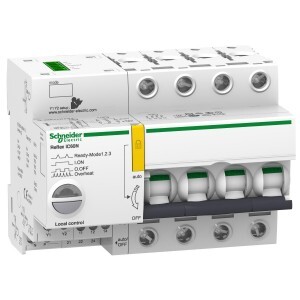

Reflex iC60H Ti24 25 A 4P curve D integrated control MCB
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Reflex iC60 |
| curve code | D |
| number of protected poles | 4 |
| network type | AC |
| Izdelek ali sestavni del | integrated control circuit breaker |
| product name | Reflex iC60 |
| Skupina izdelkov | Acti 9 |
| Opis polov | 4P |
| Aplikacija naprave | distribution control |
| Kratko ime naprave | Reflex iC60H |
| trip unit technology | thermal-magnetic |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 84 mm |
| contact position indicator | yes |
| earth-leakage protection | separate block |
| mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 13 |
| control type | toggle remote control by pulse ON/OFF button remote control by continuous command |
| [Ui] Nazivna izolacijska trdnost | 500 V AC |
| mounting mode | fixed |
| electrical durability | AC-1: 50000 cycles AC 50 Hz |
| mechanical durability | 50000 cycles |
| Kompatibilnostna koda | Reflex_iC60 |
| local signalling | flashing LED: device overheat green LED: device ON flashing LED: device tripped red LED: fault flashing LED: device ready |
| colour | white |
| Širina | 117 mm |
| Globina | 77 mm |
| [Us] rated supply voltage | 230 V AC at 50/60 Hz |
| product compatibility | with PLC |
| [In] rated current | 25 A |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC |
| control signal type | maintained very low voltage impulse maintained |
| breaking capacity | 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| locking options description | padlock in OFF position |
| breaking capacity code | H |
| provision for padlocking | padlockable |
| Okolje | |
| tropicalisation | 2 |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Stopnja onesnaženosti | 3 |
| relative humidity | 93-93 % at 40-40 °C |
