Opis

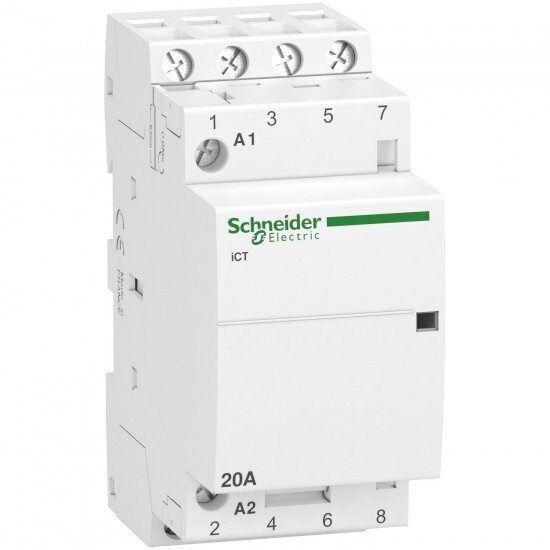

iCT 20A 4NO 220...240V 50Hz contactor
Tehnične lastnosti
| Glavno | |
| Serija izdelka | iCT |
| network type | AC |
| Izdelek ali sestavni del | contactor |
| product name | Acti 9 iCT |
| Skupina izdelkov | Acti 9 |
| Opis polov | 4P |
| Aplikacija naprave | motor-heating-lighting |
| Kratko ime naprave | iCT |
| [Ie] rated operational current | 20 A AC-7A |
| [Uc] Krmilna napetost | 220...240 V AC 50 Hz |
| pole contact composition | 4 NO |
| control type | remote control |
| Komplementarno | |
| network frequency | 50 Hz |
| Višina | 81 mm |
| mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 4 |
| Povezave - terminali | control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid power circuit: tunnel type terminals1 cable(s) 1-4 mm² flexible power circuit: tunnel type terminals1 cable(s) 1.5-6 mm² rigid control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible |
| [Ui] Nazivna izolacijska trdnost | 500 V AC 50/60 Hz |
| mounting mode | clip-on |
| electrical durability | 100000 cycles IEC/EN 61095 20 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5A 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5B |
| mechanical durability | 1000000 cycles |
| Kompatibilnostna koda | iCT |
| local signalling | action indicator |
| [Uimp] rated impulse withstand voltage | 4 kV |
| colour | white |
| Širina | 36 mm |
| Globina | 68.5 mm |
| tightening torque | control circuit: 0.8-0.8 N.m power circuit: 0.8-0.8 N.m |
| [Ue] rated operational voltage | 400 V AC 50 Hz |
| product compatibility | iACTs |
| control signal type | maintained |
| switching frequency | 100 switching operations/day |
| market segment | small commercial residential |
| Inrush power in VA | 34 VA |
| Hold-in power consumption in VA | 4.6-4.6 VA |
| maximum power | 1.6 W at 400 V AC |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-60 °C |
| tropicalisation | 2 conforming to EN 60947-4-1 2 conforming to EN 61095 2 conforming to IEC 1095 |
| IP stopnja zaščite | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Stopnja onesnaženosti | 2 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| relative humidity | 95-95 % at 55-55 °C |
| Nadmorska višina delovanja | 2000 m |
| Standardi | IEC/EN 61095 |
| noise level | 30 dB |
| heat dissipation | 1.6-1.6 W |
