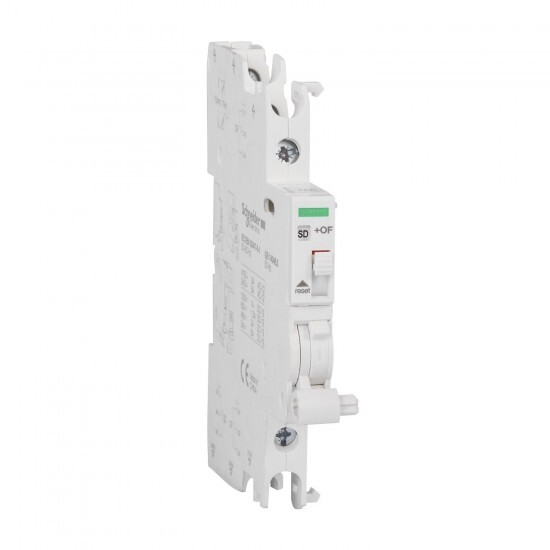

A9A26929 Schneider Electric

auxiliary contact, Acti9, iOF/SD+OF, 2OC, AC/DC

Glavno
[In] rated current	1-1 A at 130 V DC 1.5-1.5 A at 60 V DC 2-2 A at 48 V DC 6-6 A at 24 V DC 3-3 A at 415 V AC - 50/60 Hz 6-6 A at 240 V AC - 50/60 Hz
Serija izdelka	iC60 iSW-NA RCA ARA iID iDPN Vigi
Izdelek ali sestavni del	double OC or fault contact
Skupina izdelkov	Acti 9
Kratko ime naprave	iOF/SD+OF
signal contacts composition	2 C/O
9 mm pitches	1
Komplementarno
Višina	90 mm
mounting support	DIN rail
Teža izdelka	43 g
Povezave - terminali	screw clamp terminal2 cable(s) 2.5-2.5 mm² - rigid screw clamp terminal2 cable(s) 1.5-1.5 mm² - flexible with ferrule screw clamp terminal1 cable(s) 0.5-2.5 mm² - flexible screw clamp terminal1 cable(s) 1-4 mm² - rigid
wire stripping length	10 mm
[Ui] Nazivna izolacijska trdnost	500 V
mounting mode	fixed
Kompatibilnostna koda	iOF/SD+OF
local signalling	mechanical indicator
[Uimp] rated impulse withstand voltage	4 kV
colour	white
Širina	9 mm
Globina	73 mm
tightening torque	1-1 N.m
product compatibility	iID iDPN Vigi iSW-NA ARA iC60 double terminal single terminal RCA
range compatibility	Acti 9 iSW-NA Acti 9 iC60 Acti 9 iC65 Acti 9 iC60 RCBO Acti 9 iID Acti 9 ARA Acti 9 RCA Acti 9 iDPN (China version) Acti 9 iDPN Vigi Acti 9 iC40
market segment	small commercial residential
Okolje
Temperatura okoliškega zraka za delovanje	-35-70 °C
tropicalisation	2 conforming to EN/IEC 60947-5-1
Temperatura okoliškega zraka za skladiščenje	-40-85 °C
Standardi	EN/IEC 60947-5-1
