48500 Schneider Electric
48500 Schneider Electric
Opis

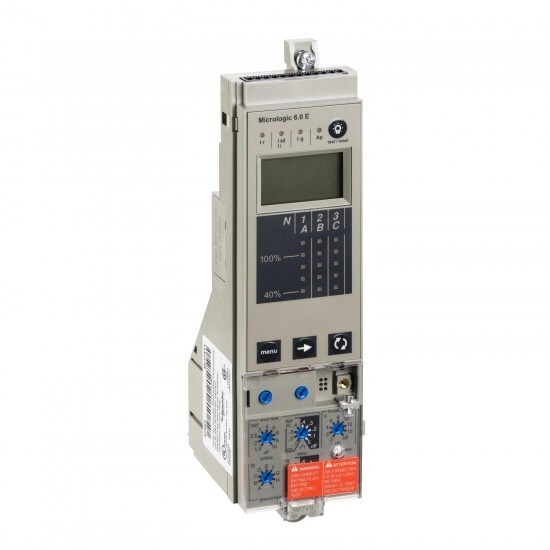

control unit Micrologic 6.0 E, for Masterpact NW circuit breakers, drawout, LSIG protections
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Masterpact NW |
| network type | AC |
| Izdelek ali sestavni del | control unit |
| product name | Micrologic |
| Skupina izdelkov | Masterpact |
| Opis polov | 3P 4P |
| Aplikacija naprave | distribution |
| trip unit technology | electronic |
| network frequency | 50/60 Hz |
| trip unit name | Micrologic 6.0 E |
| trip unit rating | 800-800 A at 50 °C 1000-1000 A at 50 °C 1250-1250 A at 50 °C 1600-1600 A at 50 °C 2000-2000 A at 50 °C 2500-2500 A at 50 °C 3200-3200 A at 50 °C 4000-4000 A at 50 °C 5000-5000 A at 50 °C 6300-6300 A at 50 °C |
| protected poles description | 4t 3t 3t + N/2 |
| protection type | earth fault instantaneous short-circuit protection overload protection (long time) short time short-circuit protection |
| Združljivost serije/obsega | Masterpact NW08...40 Masterpact NW40b...63 Masterpact NW H10 Masterpact NW H2 corrosion protection |
| trip unit protection functions | selective + earth-fault protection |
| Komplementarno | |
| mounting mode | drawout |
| long time pick-up adjustment type Ir | adjustable 9 settings |
| instantaneous pick-up adjustment range | 2...15 x In off |
| long time delay adjustment type | adjustable 9 settings |
| instantaneous pick-up adjustment type Ii | adjustable 9 settings |
| long time pick-up adjustment range | 0.4...1 x In |
| display type | digital display |
| thermal memory | 20 mn |
| [tr] long-time delay adjustment range | 0.7-16.6 s 7.2 x Ir 0.7-24 s 6 x Ir 12.5-600 s 1.5 x Ir |
| type of measurement | energy meter |
| zone selective interlocking ZSI | with |
| short-time delay adjustment type | adjustable |
| [tsd] short-time delay adjustment range | 0-0.4 s I²t=off 0.1-0.4 s I²t=on |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| short-time pick-up adjustment type Isd | adjustable 9 settings |
| communication of data | measurement readout protection and alarm settings |
| [Ig] ground-fault pick-up adjustment range | 0.2...1 x In for 400 A < In < 1250 A 0.3...1 x In for In <= 400 A 500...1200 A for In >= 1250 A |
| ground-fault time delay adjustment type -tg | adjustable |
| ground-fault pick-up adjustment type | adjustable 9 settings |
| [tg] ground-fault time delay adjustment range | 0-0.4 s I²t=off 0.1-0.4 s I²t=on |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -25-85 °C |
