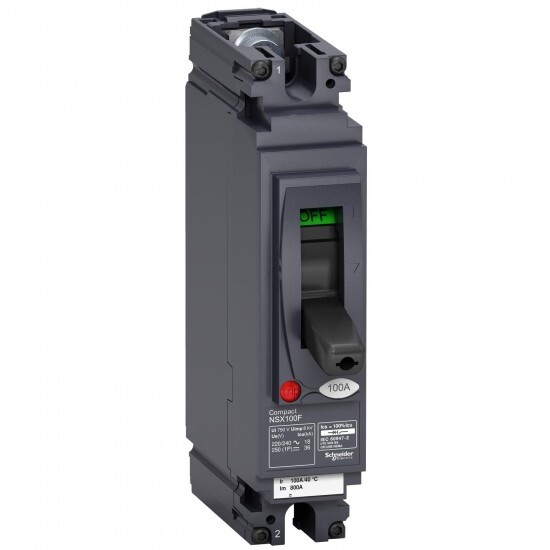

LV438565 Schneider
LV438565 Schneider
Opis
circuit breaker Compact NSX100F AC/DC, 18 kA at 240 VAC, TMD trip unit 30 A, 1 pole 1d
Tehnične lastnosti
| Glavno | |
| [In] rated current | 30 A at 40 °C |
| Serija izdelka | NSX100...250 DC NSX100...250 |
| network type | DC AC |
| breaking capacity code | F 18 kA 240 V AC |
| Izdelek ali sestavni del | circuit breaker |
| product name | Compact NSX |
| utilisation category | category A |
| Skupina izdelkov | Compact |
| breaking capacity | 36 kA Icu at 250 V DC 1P conforming to IEC 60947-2 36 kA Icu at 125 V DC 1P conforming to IEC 60947-2 18 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes conforming to IEC 60947-2 |
| Opis polov | 1P |
| Aplikacija naprave | distribution |
| Kratko ime naprave | Compact NSX100F |
| trip unit technology | thermal-magnetic |
| network frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 36 kA at 250 V DC conforming to IEC 60947-2 36 kA at 125 V DC conforming to IEC 60947-2 18 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit name | TM-D |
| protected poles description | 1t |
| [Ue] rated operational voltage | 250 V DC conforming to IEC 60947-2 277 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| pollution degree | 3 conforming to IEC 60947 |
| trip unit protection functions | LI |
| Komplementarno | |
| Višina | 161 mm |
| mounting support | backplate |
| control type | toggle |
| mounting mode | fixed |
| electrical durability | 10000 cycles 277 V AC 50/60 Hz In conforming to IEC 60947-2 20000 cycles 277 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| mechanical durability | 20000 cycles |
| Kompatibilnostna koda | NSX100 |
| local signalling | positive contact indication |
| Širina | 35 mm |
| Globina | 86 mm |
| long time pick-up adjustment type Ir | fixed |
| upside connection | front |
| magnetic tripping current | 260-260 A 640-640 A 1000-1000 A 190-190 A 500-500 A 1250-1250 A 800-800 A 300-300 A |
| downside connection | front |
| protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| connection pitch | 35 mm |
| instantaneous pick-up adjustment range | 300 A |
| instantaneous pick-up adjustment type Ii | fixed |
| long time pick-up adjustment range | 0.8...1 x In |
| auxiliary contact composition | without |
| trip unit rating | 30-30 A at 40 °C |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP40 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -50-85 °C |
| IK stopnja zaščite | IK07 conforming to EN 50102 |
| Certifikati izdelkov | EAC Marine CCC |
| Standardi | EN/IEC 60947 UL 508 |
