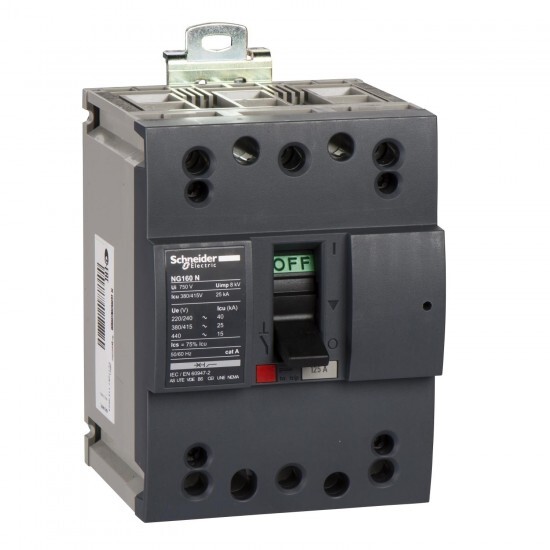

circuit breaker NG160N - TMD - 125 A - 3 poles 3d
Tehnične lastnosti
| Glavno | |
| [In] rated current | 125 A at 40 °C |
| Serija izdelka | NG160 |
| network type | AC |
| breaking capacity code | N |
| Izdelek ali sestavni del | circuit breaker |
| product name | NG160 |
| Skupina izdelkov | Compact |
| breaking capacity | 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes |
| Opis polov | 3P |
| Aplikacija naprave | distribution |
| Kratko ime naprave | NG160N |
| trip unit technology | thermal-magnetic |
| network frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 30 kA at 220/240 V AC 50/60 Hz 7.5 kA at 500 V AC 50/60 Hz 12 kA at 440 V AC 50/60 Hz 18.75 kA at 380/415 V AC 50/60 Hz |
| trip unit name | TM-D |
| trip unit rating | 125-125 A |
| protected poles description | 3t |
| protection type | short-circuit protection (magnetic) overload protection (thermal) |
| circuit breaker name | NG160N |
| Komplementarno | |
| Višina | 120 mm |
| earth-leakage protection | separate block |
| mounting support | 35 mm symmetrical DIN rail |
| Povezave - terminali | tunnel type terminals |
| control type | toggle |
| mounting mode | clipped |
| electrical durability | 5000 cycles 440 V |
| mechanical durability | 10000 cycles |
| Kompatibilnostna koda | NG160 |
| local signalling | ON/OFF indication |
| Širina | 90 mm |
| Globina | 82.5 mm |
| long time pick-up adjustment type Ir | fixed |
| upside connection | front |
| magnetic tripping current | 1250-1250 A |
| downside connection | front |
| product compatibility | single terminal |
| Okolje | |
| Standardi | IEC 60947-3 |
