04031 Schneider
04031 Schneider
Opis

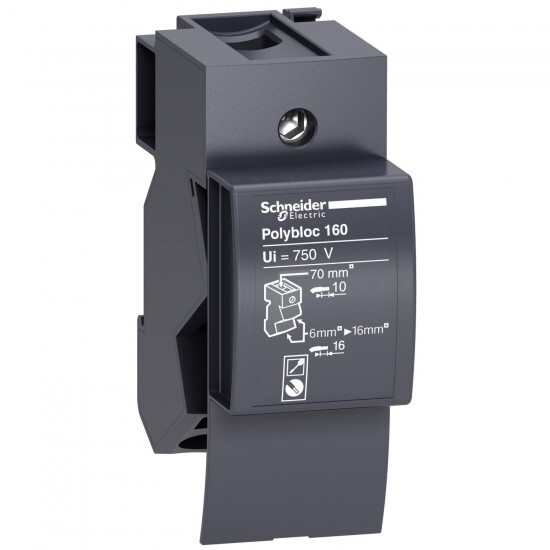

Linergy DX 1P distribution block 160A - 4 modules - 6 holes quick connection
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma Plus System P Prisma Plus System G |
| Izdelek ali sestavni del | distribution block |
| product name | Linergy DX |
| Skupina izdelkov | Linergy |
| Kategorija dodatkov/ločenih delov | current distribution accessory |
| Združljivost izdelkov | Spacial enclosures |
| IP degree of protection | IPxx B |
| Združljivost serije/obsega | Prisma G Prisma P Prisma PH Pack 160 Prisma Pack 250 |
| Komplementarno | |
| Višina | 95 mm |
| mounting support | DIN rail |
| 9 mm pitches | 4 |
| Teža izdelka | 0.1 kg |
| Povezave - terminali | supply: tunnel type terminal70-70 mm² (flexible) supply: tunnel type terminal70-70 mm² (rigid) distribution: spring terminal, 6 x 6-16 mm² (flexible) distribution: spring terminal, 6 x 6-16 mm² (rigid) |
| [Ui] Nazivna izolacijska trdnost | 750 V AC |
| Kompatibilnostna koda | POLYBLOC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| colour | anthracite grey (RAL 7016) |
| Širina | 36 mm |
| Globina | 70 mm |
| [Ue] rated operational voltage | 690 V AC |
| [In] rated current | 160 A at 40 °C |
| [Ie] rated operational current | 160 A |
| [Icw] rated short-time withstand current | 5.5 kAfor 1 s |
| [Ipk] rated peak withstand current | 24 kA |
| total number of 18 mm modules | 2 |
| poles description | 1P |
| installed device | Acti 9: fixed C120 with earth leakage protection - control: toggle FuPact: fixed ISFT160 - control: fuse carriers handle - vertical installation FuPact: fixed ISFT100N - control: fuse carriers handle - vertical installation Multi 9: fixed NG125 with earth leakage protection - control: toggle Multi 9: fixed NG125 without earth leakage protection - control: toggle Multi 9: fixed NG125 NA - control: toggle Compact: fixed NG160 with earth leakage protection - control: toggle Compact: fixed NG160 without earth leakage protection - control: toggle Compact: fixed NG160 NA without earth leakage protection - control: toggle FuPact: fixed INF100...160 - control: extended rotary handle - vertical installation Compact: fixed NSXm without earth leakage protection - control: toggle - vertical installation Acti 9: fixed C120 without earth leakage protection - control: toggle Compact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation Compact: fixed NSXm with earth leakage protection - control: toggle - vertical installation Compact: fixed NSXm with earth leakage protection - control: toggle - horizontal installation Acti 9: fixed iC120 with earth leakage protection - control: toggle Acti 9: fixed iC120 without earth leakage protection - control: toggle Compact: fixed INS40 - control: direct front rotary handle - vertical installation Compact: fixed INS63 - control: direct front rotary handle - vertical installation Compact: fixed INS100 - control: direct front rotary handle - vertical installation Compact: fixed INS125 - control: direct front rotary handle - vertical installation Compact: fixed INS160 - control: direct front rotary handle - vertical installation |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 300 mm Prisma G wall-mounted duct Multi 9 NG125 without fixed toggle 3P 1 direct 4 300 mm Prisma G floor-standing duct Multi 9 NG125 without fixed toggle 4P 1 direct 4 300 mm Prisma G wall-mounted duct Multi 9 NG125 without fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Multi 9 NG125 NA fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 NA fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Multi 9 NG125 NA fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 NA fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Multi 9 NG125 NA fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Multi 9 NG125 NA fixed toggle 3P 1 direct 4 300 mm Prisma G floor-standing duct Multi 9 NG125 NA fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 300 mm Prisma G wall-mounted duct Multi 9 NG125 NA fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact NG160 without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 without fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact NG160 without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 without fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Compact NG160 without fixed toggle 3P 1 direct 5 300 mm Prisma G wall-mounted duct Compact NG160 without fixed toggle 3P 1 direct 5 300 mm Prisma G floor-standing duct Compact NG160 without fixed toggle 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact NG160 without fixed toggle 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact NG160 NA without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 NA without fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact NG160 NA without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 NA without fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Compact NG160 NA without fixed toggle 3P 1 direct 5 300 mm Prisma G wall-mounted duct Compact NG160 NA without fixed toggle 3P 1 direct 5 300 mm Prisma G floor-standing duct Compact NG160 NA without fixed toggle 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact NG160 NA without fixed toggle 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Acti 9 C120 with fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 C120 with fixed toggle 3P 1 direct 4 300 mm Prisma G floor-standing duct Acti 9 C120 with fixed toggle 4P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 C120 with fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 300 mm Prisma G floor-standing duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Multi 9 NG125 with fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 with fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Multi 9 NG125 with fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 with fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Multi 9 NG125 with fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Multi 9 NG125 with fixed toggle 3P 1 direct 4 300 mm Prisma G floor-standing duct Multi 9 NG125 with fixed toggle 4P 1 direct 4 300 mm Prisma G floor-standing duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 300 mm Prisma G wall-mounted duct Multi 9 NG125 with fixed toggle 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact NG160 with fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 with fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact NG160 with fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact NG160 with fixed toggle 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 600 mm Prisma G wall-mounted enclosure Compact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 300 mm Prisma G floor-standing duct Compact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 300 mm Prisma G wall-mounted duct Compact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 600 mm Prisma G floor-standing enclosure Compact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 300 mm Prisma G wall-mounted duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 850 mm Prisma G floor-standing enclosure Compact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 mm Prisma G floor-standing enclosure Compact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 600 mm Prisma G wall-mounted enclosure Compact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 850 mm Prisma G floor-standing enclosure Compact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 600 mm Prisma G floor-standing enclosure Compact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 600 mm Prisma G wall-mounted enclosure Compact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 300 mm Prisma G floor-standing duct Compact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 300 mm Prisma G wall-mounted duct Compact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 600 mm Prisma G floor-standing enclosure Compact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 mm Prisma G floor-standing enclosure FuPact INF100...160 fixed extended rotary handle vertical 3P 2 direct 7 600 mm Prisma G wall-mounted enclosure Compact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 850 mm Prisma G floor-standing enclosure Compact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 555 mm Pack 160 Pack enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 4P 1 direct 6 555 mm Pack 160 Pack enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 6 600 mm Prisma G wall-mounted enclosure FuPact INF100...160 fixed extended rotary handle vertical 3P 2 direct 7 600 mm Prisma Pack 250 Pack enclosure Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 6 555 mm Pack 160 Pack enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 6 555 mm Pack 160 Pack enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS40 fixed direct front rotary handle vertical 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS40 fixed direct front rotary handle vertical 4P 1 direct 6 600 mm Prisma G floor-standing enclosure FuPact INF100...160 fixed extended rotary handle vertical 4P 2 direct 7 600 mm Prisma Pack 250 Pack enclosure Compact INS63 fixed direct front rotary handle vertical 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Compact INS63 fixed direct front rotary handle vertical 4P 1 direct 6 555 mm Pack 160 Pack enclosure Multi 9 NG125 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi 9 NG125 without fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Multi 9 NG125 without fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Multi 9 NG125 without fixed toggle 4P 1 direct 6 555 mm Pack 160 Pack enclosure Multi 9 NG125 NA fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi 9 NG125 NA fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure Compact NG160 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Compact NG160 without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure FuPact INF100...160 fixed extended rotary handle vertical 4P 2 direct 7 555 mm Pack 160 Pack enclosure Compact NG160 NA without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Compact NG160 NA without fixed toggle 4P 1 direct 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 555 mm Pack 160 Pack enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 4P 1 direct 6 600 mm Prisma G floor-standing enclosure Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 555 mm Pack 160 Pack enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 6 555 mm Pack 160 Pack enclosure Multi 9 NG125 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi 9 NG125 with fixed toggle 4P 1 direct 5 600 mm Prisma Pack 250 Pack enclosure Multi 9 NG125 with fixed toggle 3P 1 direct 6 600 mm Prisma Pack 250 Pack enclosure Multi 9 NG125 with fixed toggle 4P 1 direct 6 555 mm Pack 160 Pack enclosure Compact NG160 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Compact NG160 with fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 mm Prisma G floor-standing enclosure Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G floor-standing duct Acti 9 C120 without fixed toggle 3P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G wall-mounted duct Acti 9 C120 without fixed toggle 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 300 mm Prisma G floor-standing duct Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 300 mm Prisma G wall-mounted duct Compact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm Prisma G floor-standing enclosure Compact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Acti 9 C120 without fixed toggle 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure Compact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Acti 9 C120 without fixed toggle 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure Compact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 300 mm Prisma G floor-standing duct Compact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 300 mm Prisma G wall-mounted duct Compact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 6 rear connection on busbar 8 600 mm Prisma G wall-mounted enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 6 rear connection on busbar 8 600 mm Prisma G floor-standing enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 600 mm Prisma G wall-mounted enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 600 mm Prisma G floor-standing enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 direct 8 600 mm Prisma G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 direct 8 600 mm Prisma G floor-standing enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 rear connection on busbar 8 600 mm Prisma G wall-mounted enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 rear connection on busbar 8 300 mm Prisma G floor-standing duct FuPact ISFT160 fixed fuse carriers handle vertical 3P 1 direct 6 300 mm Prisma G wall-mounted duct FuPact ISFT160 fixed fuse carriers handle vertical 3P 1 direct 6 600 mm Prisma G floor-standing enclosure Multi 9 NG125 without fixed toggle 3P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 without fixed toggle 3P 1 direct 5 600 mm Prisma G floor-standing enclosure Multi 9 NG125 without fixed toggle 4P 1 direct 5 600 mm Prisma G wall-mounted enclosure Multi 9 NG125 without fixed toggle 4P 1 direct 5 300 mm Prisma G floor-standing duct Multi 9 NG125 without fixed toggle 3P 1 direct 4 |
| I²t on activation | 30250000 A².s |
| Okolje | |
| Stopnja onesnaženosti | 3 |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-1, inside Prisma IEC 61439-2, inside Prisma IEC 60947-7-1 |
| resistance to incandescent wire | 960 °C conforming to IEC 60695-2-11 |
