Opis

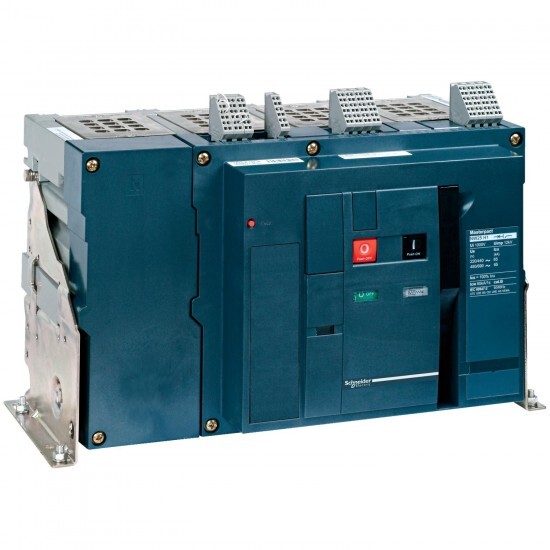

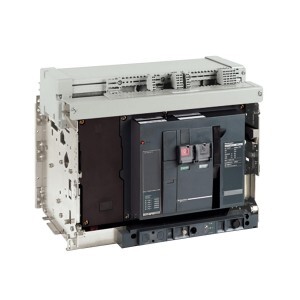

switch-disconnector Masterpact NW40HA - 4000 A - 690 V - 4 poles - fixed
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Masterpact NW |
| network type | AC |
| breaking capacity code | HA |
| Izdelek ali sestavni del | switch disconnector |
| product name | Masterpact NW |
| Skupina izdelkov | Masterpact |
| suitability for isolation | yes conforming to IEC 60947-3 |
| Opis polov | 4P |
| Aplikacija naprave | protection |
| Kratko ime naprave | Masterpact NW40 |
| network frequency | 50/60 Hz |
| [Ie] rated operational current | 4000 A AC 50/60 Hz 690 V |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-3 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 121 kA 220...690 V AC at 50/60 Hz |
| pollution degree | 4 conforming to IEC 60664-1 |
| contact position indicator | yes |
| visible break | no |
| switch-disconnector name | Masterpact NW40HA |
| Komplementarno | |
| Višina | 352 mm |
| Teža izdelka | 80 kg |
| control type | push-button |
| mounting mode | fixed |
| electrical durability | AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
| mechanical durability | 10000 cycles without maintenance conforming to IEC 60947-3 20000 cycles with maintenance conforming to IEC 60947-3 |
| Kompatibilnostna koda | NW40 |
| Širina | 537 mm |
| Globina | 297 mm |
| [Icw] rated short-time withstand current | 55 kA during 1 s conforming to IEC 60947-3 55 kA during 3 s conforming to IEC 60947-3 |
| connection pitch | 150 mm |
| targeted country | China |
| operating rate | 10 cyc/h maximum |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -35-85 °C |
| Certifikati izdelkov | ASEFA ASTA |
| Standardi | IEC 60947-3 |
