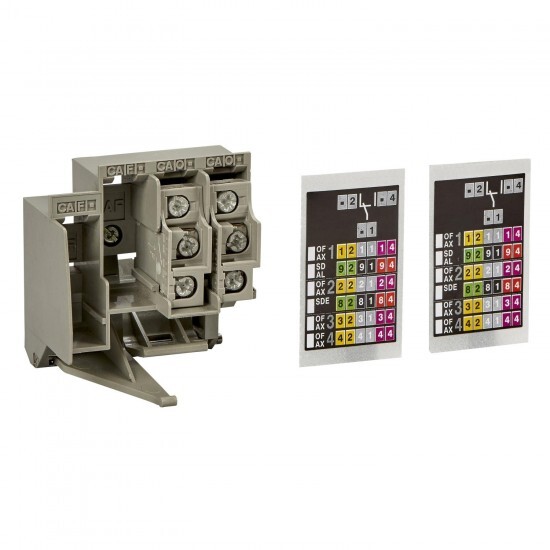

33883 Schneider Electric

standard auxiliary contact for fixed Compact NS630b to Compact NS1600, CAF contact

Glavno
Serija izdelka	NS630b...1600
Izdelek ali sestavni del	auxiliary contact
Kratko ime naprave	2 C/O
Združljivost serije/obsega	Compact NS630b...1600
offer type	C4
signal contacts composition	2 NO/NC
Komplementarno
mounting mode	clip-on
[Ith] conventional free air thermal current	6 A
[Ie] rated operational current	AC-12: 6 A at 110 V AC 50/60 Hz AC-15: 2 A at 380/440 V AC 50/60 Hz AC-15: 4 A at 220/240 V AC 50/60 Hz AC-15: 5 A at 110 V AC 50/60 Hz AC-15: 6 A at 24 V AC 50/60 Hz AC-15: 6 A at 48 V AC 50/60 Hz DC-12: 0.3 A at 250 V DC DC-12: 0.6 A at 110 V DC DC-12: 2.5 A at 48 V DC DC-12: 6 A at 24 V DC DC-14: 0.03 A at 250 V DC AC-12: 6 A at 220/240 V AC 50/60 Hz DC-14: 0.05 A at 110 V DC DC-14: 0.2 A at 48 V DC DC-14: 1 A at 24 V DC AC-12: 6 A at 24 V AC 50/60 Hz AC-12: 6 A at 380/440 V AC 50/60 Hz AC-12: 6 A at 48 V AC 50/60 Hz AC-12: 6 A at 480 V AC 50/60 Hz AC-12: 6 A at 660/690 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz AC-15: 1.5 A at 480 V AC 50/60 Hz
minimum load	100 mA at 24 V
auxiliary contacts type	standard
auxiliary contacts operation	early-make
