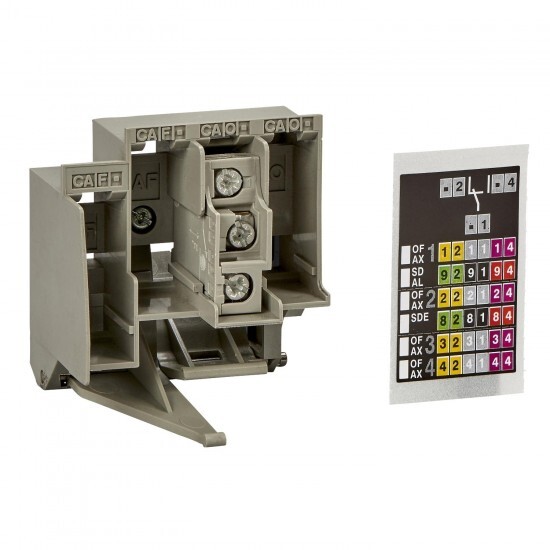

33004 Schneider Electric

standard auxiliary contact for fixed Compact NS630b to Compact NS3200, SD contact

Glavno
Serija izdelka	NS1600b...3200 NS630b...1600
Izdelek ali sestavni del	auxiliary contact
Kratko ime naprave	SD
Združljivost serije/obsega	Compact NS630b...1600 Compact NS1600b...3200
offer type	C5 C4
signal contacts composition	1 NO/NC
Komplementarno
mounting mode	clip-on
[Ith] conventional free air thermal current	6 A
[Ie] rated operational current	AC-12: 6 A at 110 V AC 50/60 Hz AC-15: 2 A at 380/440 V AC 50/60 Hz AC-15: 4 A at 220/240 V AC 50/60 Hz AC-15: 5 A at 110 V AC 50/60 Hz AC-15: 6 A at 24 V AC 50/60 Hz AC-15: 6 A at 48 V AC 50/60 Hz DC-12: 0.3 A at 250 V DC DC-12: 0.6 A at 110 V DC DC-12: 2.5 A at 48 V DC DC-12: 6 A at 24 V DC DC-14: 0.03 A at 250 V DC AC-12: 6 A at 220/240 V AC 50/60 Hz DC-14: 0.05 A at 110 V DC DC-14: 0.2 A at 48 V DC DC-14: 1 A at 24 V DC AC-12: 6 A at 24 V AC 50/60 Hz AC-12: 6 A at 380/440 V AC 50/60 Hz AC-12: 6 A at 48 V AC 50/60 Hz AC-12: 6 A at 480 V AC 50/60 Hz AC-12: 6 A at 660/690 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz AC-15: 1.5 A at 480 V AC 50/60 Hz
minimum load	100 mA at 24 V
auxiliary contacts type	standard
