Opis

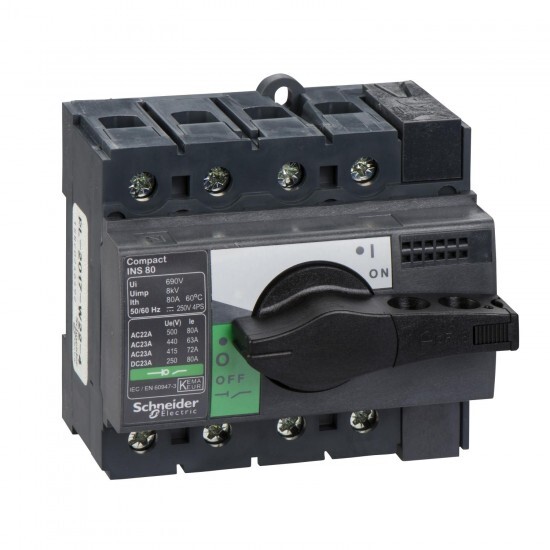

switch disconnector, Compact INS80 , 80 A, standard version with black rotary handle, 4 poles
Tehnične lastnosti
| Glavno | |
| Serija izdelka | INS40...160 |
| network type | AC DC |
| Izdelek ali sestavni del | switch disconnector |
| product name | Compact INS |
| Skupina izdelkov | Compact |
| suitability for isolation | yes |
| Opis polov | 4P |
| Kratko ime naprave | Compact INS80 |
| network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-23A: 40 A AC 50/60 Hz 500 V DC-23A: 80 A DC 125 V 2 poles in series DC-22A: 80 A DC 250 V 4 poles in series DC-23A: 80 A DC 250 V 4 poles in series AC-23A: 63 A AC 50/60 Hz 440/480 V AC-22A: 80 A AC 50/60 Hz 220/240 V AC-22A: 80 A AC 50/60 Hz 380/415 V AC-22A: 80 A AC 50/60 Hz 440/480 V AC-22A: 80 A AC 50/60 Hz 500 V AC-23A: 72 A AC 50/60 Hz 380/415 V AC-23A: 80 A AC 50/60 Hz 220/240 V DC-22A: 80 A DC 125 V 2 poles in series |
| [Ue] rated operational voltage | 500 V AC 50/60 Hz 250 V DC |
| [Ith] conventional free air thermal current | 80 A at 60 °C |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 15 kA switch-disconnector alone 500 V AC at 50/60 Hz 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz |
| pollution degree | 3 |
| contact position indicator | yes |
| visible break | no |
| switch-disconnector name | Compact INS80 |
| Komplementarno | |
| Višina | 85 mm |
| mounting support | plate DIN rail |
| Teža izdelka | 0.6 kg |
| control type | rotary handle |
| mounting mode | fixed |
| electrical durability | AC-22A: 1500 cycles 220/240 V AC 50/60 Hz DC-23A: 1500 cycles 250 V DC 4 poles in series AC-22A: 1500 cycles 380/415 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 220/240 V AC 50/60 Hz AC-23A: 1500 cycles 380/415 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz DC-22A: 1500 cycles 250 V DC 4 poles in series |
| mechanical durability | 20000 cycles |
| Kompatibilnostna koda | INS80 |
| Širina | 90 mm |
| Globina | 62.5 mm |
| upside connection | front |
| downside connection | front |
| cable cross section | 1.5-50 mm² |
| [Icw] rated short-time withstand current | 0.067 kA during 20 s conforming to IEC 60947-3 1.73 kA during 3 s conforming to IEC 60947-3 3 kA during 1 s conforming to IEC 60947-3 5.5 kA during 30 s conforming to IEC 60947-3 |
| connection pitch | 18 mm |
| rated duty | uninterrupted |
| maximum power | AC-23: 22 kW at 500/525 V AC 50/60 Hz AC-23: 22 kW at 220/240 V AC 50/60 Hz AC-23: 37 kW at 380/415 V AC 50/60 Hz AC-23: 37 kW at 440 V AC 50/60 Hz |
| handle colour | black |
| intermittent duty class | class 120 - 60 % |
| enclosure dimensions for Ithe | 190 mm x 115 mm x 55 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP40 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -50-85 °C |
| IK stopnja zaščite | IK07 conforming to EN 50102 |
| Certifikati izdelkov | CCC KEMA-KEUR |
| Standardi | IEC 60947-3 IEC 60947-1 |
