04033 Schneider
04033 Schneider
Opis

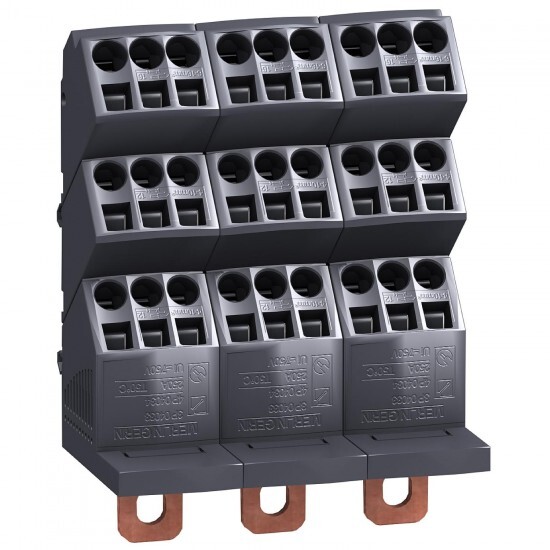

LINERGY DP 3P D.BLK/COMPACT 250A 27HOLES
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma Plus System P Prisma Plus System G |
| Izdelek ali sestavni del | distribution block |
| product name | Linergy DP |
| Skupina izdelkov | Linergy |
| Kategorija dodatkov/ločenih delov | current distribution accessory |
| Združljivost izdelkov | Spacial enclosures |
| IP degree of protection | IPxx B |
| Združljivost serije/obsega | Prisma G Prisma P Prisma PH Prisma Pack 250 |
| Komplementarno | |
| Višina | 105 mm |
| mounting support | Prisma mounting plate DIN rail |
| Teža izdelka | 0.74 kg |
| Povezave - terminali | supply: lug120-120 mm² distribution: spring terminal (phase) , 6 x 4-10 mm² (flexible) distribution: spring terminal (phase) , 3 x 6-16 mm² (flexible) distribution: spring terminal (phase) , 6 x 4-10 mm² (rigid) distribution: spring terminal (phase) , 3 x 6-16 mm² (rigid) |
| [Ui] Nazivna izolacijska trdnost | 750 V AC |
| Kompatibilnostna koda | POLYBLOC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Širina | 138 mm |
| Globina | 63 mm |
| [Ue] rated operational voltage | 690 V AC |
| [In] rated current | 250 A at 40 °C |
| [Ie] rated operational current | 250 A |
| [Icw] rated short-time withstand current | 8.5 kAfor 1 s |
| [Ipk] rated peak withstand current | 30 kA |
| poles description | 3P |
| installed device | Easypact: fixed CVS100...160 without earth leakage protection - control: toggle - horizontal installation Easypact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - vertical installation Easypact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - vertical installation Easypact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed INS250 - control: direct front rotary handle - horizontal installation Compact: fixed INS250 - control: direct front rotary handle - vertical installation Compact: fixed INS250 - control: lateral handle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: toggle - horizontal installation Compact: fixed INV100 - control: direct front rotary handle - horizontal installation Compact: fixed INV250 - control: direct front rotary handle - horizontal installation Compact: fixed INV250 - control: lateral handle - vertical installation Compact: fixed INV250 - control: direct front rotary handle - vertical installation Compact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX250 without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX250 with earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX100...160 with earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation Compact: fixed NSX250 without earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX100...160 without earth leakage protection - control: toggle - horizontal installation Compact: plug-in NSX250 without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation Compact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation Compact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation Compact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed INV100 - control: direct front rotary handle - vertical installation Compact: fixed INV200 - control: direct front rotary handle - vertical installation Compact: fixed INV160 - control: direct front rotary handle - horizontal installation Compact: fixed INV160 - control: direct front rotary handle - vertical installation Compact: fixed INV200 - control: direct front rotary handle - horizontal installation Easypact: fixed CVS100...160 with earth leakage protection - control: toggle - horizontal installation Easypact: fixed CVS250 with earth leakage protection - control: toggle - horizontal installation Easypact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure Compact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 300 mm Prisma G floor-standing duct Compact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV250 fixed lateral handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INV250 fixed lateral handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G floor-standing enclosure Compact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 300 mm Prisma G floor-standing duct Compact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX250 without fixed toggle horizontal 3P 1 connection block 5 600 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 850 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G wall-mounted enclosure Compact NSX250 without fixed toggle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 850 mm Prisma G floor-standing enclosure Compact NSX250 without fixed toggle horizontal 3P 1 connection block 5 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 mm Prisma Pack 250 Pack enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 6 600 mm Prisma Pack 250 Pack enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...250 and ammeter without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...250 and ammeter without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G floor-standing enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 without fixed toggle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 without fixed toggle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 850 mm Prisma G floor-standing enclosure Compact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G wall-mounted enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX250 without fixed toggle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G wall-mounted enclosure Compact NSX250 without fixed toggle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G floor-standing enclosure Compact NSX250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G wall-mounted enclosure Compact NSX250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11 300 mm Prisma G floor-standing duct Compact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 850 mm Prisma G floor-standing enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma Pack 250 Pack enclosure Compact NSX250 without fixed toggle horizontal 3P 1 connection block 6 600 mm Prisma Pack 250 Pack enclosure Compact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Easypact CVS100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G floor-standing enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10 300 mm Prisma G floor-standing duct Easypact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 300 mm Prisma G wall-mounted duct Easypact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 600 mm Prisma G floor-standing enclosure Easypact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Easypact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G wall-mounted enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Easypact CVS250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS250 with fixed toggle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G wall-mounted enclosure Easypact CVS250 with fixed toggle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G floor-standing enclosure Easypact CVS250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G wall-mounted enclosure Easypact CVS250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13 300 mm Prisma G floor-standing duct Easypact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 300 mm Prisma G wall-mounted duct Easypact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G wall-mounted enclosure Compact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G floor-standing enclosure Compact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 850 mm Prisma G floor-standing enclosure Compact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Compact NSX100...160 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 with fixed toggle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G floor-standing enclosure Compact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10 600 mm Prisma G wall-mounted enclosure Compact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10 850 mm Prisma G floor-standing enclosure Compact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5 300 mm Prisma G floor-standing duct Compact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 300 mm Prisma G wall-mounted duct Compact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 850 mm Prisma G floor-standing enclosure Compact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G floor-standing enclosure + duct Compact NSX250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact NSX250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Compact NSX250 with fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G floor-standing enclosure Compact NSX250 with fixed toggle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G wall-mounted enclosure Compact NSX250 with fixed toggle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G floor-standing enclosure Compact NSX250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13 600 mm Prisma G wall-mounted enclosure Compact NSX250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13 300 mm Prisma G floor-standing duct Compact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 300 mm Prisma G wall-mounted duct Compact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Compact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G floor-standing enclosure Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9 600 mm Prisma G wall-mounted enclosure Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 mm Prisma G floor-standing enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma Pack 250 Pack enclosure Easypact CVS100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 600 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Easypact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Easypact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Easypact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G wall-mounted enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed toggle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G wall-mounted enclosure Easypact CVS250 without fixed toggle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G floor-standing enclosure Easypact CVS250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11 600 mm Prisma G wall-mounted enclosure Easypact CVS250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 mm Prisma Pack 250 Pack enclosure Easypact CVS250 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 850 mm Prisma G floor-standing enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INS250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INS250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INS250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact INS250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G floor-standing enclosure Compact INS250 fixed lateral handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INS250 fixed lateral handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G floor-standing enclosure Compact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G floor-standing enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5 300 mm Prisma G floor-standing duct Compact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G wall-mounted enclosure Compact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 300 mm Prisma G floor-standing duct Compact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5 850 mm Prisma G floor-standing enclosure Compact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 850 mm Prisma G floor-standing enclosure Compact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 mm Prisma G floor-standing enclosure Compact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 600 mm Prisma G wall-mounted enclosure Compact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 8 300 mm Prisma G floor-standing duct Compact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4 600 mm Prisma G floor-standing enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 mm Prisma G wall-mounted enclosure Compact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 5 600 + 300 mm Prisma G floor-standing enclosure + duct Compact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5 600 + 300 mm Prisma G wall-mounted enclosure + duct Compact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5 |
| I²t on activation | 72250000 A².s |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| Stopnja onesnaženosti | 3 |
| overvoltage category | III |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 IEC 61439-1 |
| resistance to incandescent wire | 960 °C conforming to IEC 60695-2-11 |
