GZ1E22 Schneider Electric
GZ1E22 Schneider Electric

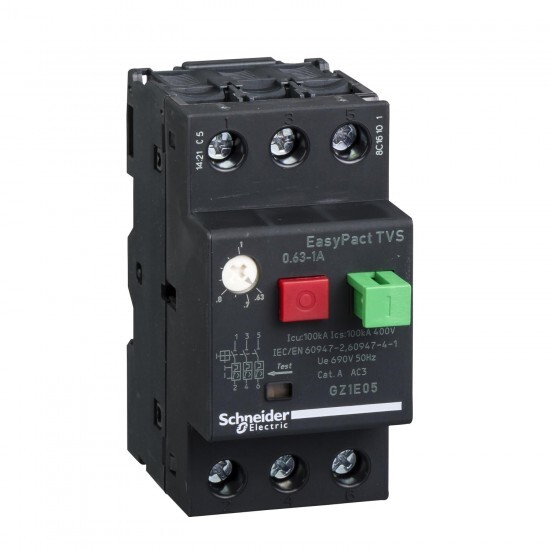

Opis
motor circuit breaker GZ1 - 3 poles 3d - 20..25A - thermomagnetic trip unit
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | circuit breaker |
| product name | EasyPact TVS |
| Skupina izdelkov | EasyPact |
| suitability for isolation | yes conforming to IEC 60947-1 appendix 7.1.6 |
| Aplikacija naprave | motor |
| Kratko ime naprave | GZ1E |
| trip unit technology | thermal-magnetic |
| colour | grey (RAL 7011) |
| Komplementarno | |
| network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Višina | 89 mm |
| mounting support | rail |
| Teža izdelka | 0.26 kg |
| Povezave - terminali | screw clamp terminals 2 1-6 mm² - cable stiffness: solid screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end |
| control type | push-button |
| [Ui] Nazivna izolacijska trdnost | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| mounting mode | by screws by clips |
| electrical durability | 100000 cycles for AC-3 |
| mechanical durability | 100000 cycles |
| Širina | 44.5 mm |
| Globina | 78 mm |
| tightening torque | 1.7 N.m on screw clamp terminals |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| magnetic tripping current | 327-327 A |
| breaking capacity | Icu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 10 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 30 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 3 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| maximum operating rate | 25 cyc/h |
| thermal protection adjustment range | 20-25 A |
| mounting position | any position |
| poles description | 3P |
| network type | AC |
| motor power kW | 5.5-5.5 kW at 230 V AC 50/60 Hz 11-11 kW at 440 V AC 50/60 Hz 11-11 kW at 400 V AC 50/60 Hz 15-15 kW at 500 V AC 50/60 Hz 22-22 kW at 690 V AC 50/60 Hz |
| utilisation category | AC-3 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| power dissipation | 2.5 W (per pole) |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-80 °C |
| Nadmorska višina delovanja | 2000 m |
| Standardi | IEC 60947-4 IEC 60947-2 |
| Zaščitna obdelava | TH |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
