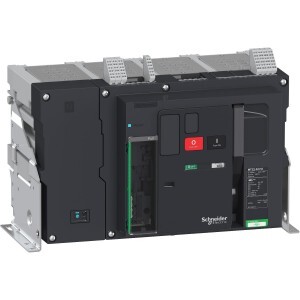

circuit breaker Masterpact NT10L1 - 1000 A - 4 poles - drawout - w/o trip unit
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Masterpact NT |
| network type | AC |
| breaking capacity code | L1 |
| Izdelek ali sestavni del | basic frame |
| product name | MasterPact NT |
| utilisation category | category A |
| Skupina izdelkov | Masterpact |
| suitability for isolation | yes conforming to IEC 60947-2 |
| Opis polov | 4P |
| Kratko ime naprave | Masterpact NT10 |
| circuit breaker name | Masterpact NT10L1 |
| neutral position | left |
| Komplementarno | |
| network frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 150 kA at 220/415 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Višina | 322 mm |
| control type | push-button |
| [Ui] Nazivna izolacijska trdnost | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
| mounting mode | drawout |
| electrical durability | AC-23A: 3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-3: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 2000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 3000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| mechanical durability | 12500 cycles without maintenance conforming to IEC 60947-2 |
| Kompatibilnostna koda | NT10 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| Širina | 358 mm |
| Globina | 276.5 mm |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 1000 A at 40 °C |
| protection type | without protection |
| [Icm] rated short-circuit making capacity | 220 kA 525 V AC at 50/60 Hz 286 kA 440 V AC at 50/60 Hz 330 kA 220/415 V AC at 50/60 Hz 52 kA 690 V AC at 50/60 Hz |
| breaking capacity | 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 150 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 150 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 10 kA 0.5 s conforming to IEC 60947-2 |
| connection pitch | 70 mm |
| integral instant protection | 9-11 kA |
| circuit breaker CT rating | 1000 A |
| maximum breaking time | 9-9 ms |
| maximum closing response time | 50 ms |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Stopnja onesnaženosti | 3 conforming to IEC 60664-1 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| Certifikati izdelkov | LCIE ASEFA |
| Standardi | IEC 60947-2 |
