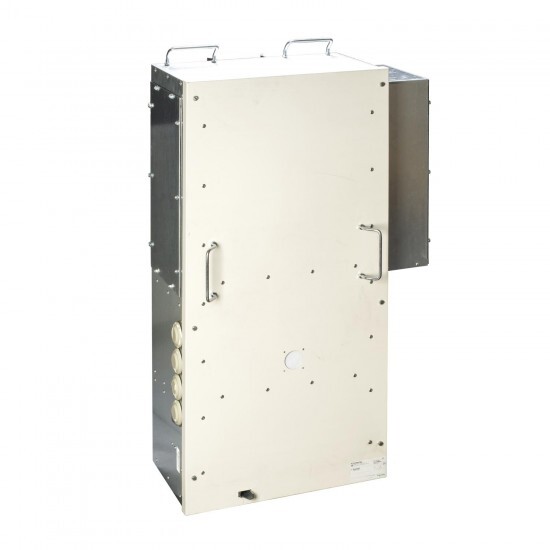

KTB1000CB5 Schneider Electric

KT FIXED TAPOFF 3L PEN NS1000

Glavno
Serija izdelka	Canalis
Izdelek ali sestavni del	tap-off unit
Skupina izdelkov	Canalis
protection type	circuit breaker: NS800...1000
[Ie] rated operational current	800-1000 A at 35 °C
Provided equipment	circuit breaker to be ordered separately
Združljivost izdelkov	Canalis KT busbar trunking with KS type plug-in
Združljivost serije/obsega	KT busbar trunking
mounting mode	bolt-on
tap-off unit polarity	3L+PEN
Komplementarno
network frequency	50/60 Hz
Višina	550 mm
Teža izdelka	45 kg
control type	rotary handle
[Ui] Nazivna izolacijska trdnost	500 V
[Uimp] rated impulse withstand voltage	8 kV
colour	white (RAL 9001)
Širina	1130 mm
Globina	330 mm
[Ue] rated operational voltage	500 V
standards	IEC 61439-1 IEC 61439-6
door opening side	front
electrical connection	bolted connection 300-300 mm² (x4 ) - for L/N bolted connection 200-200 mm² (x1 ) - for PE
function available	circuit breaker
device application	high power distribution
18 mm pitches	63
Okolje
IP stopnja zaščite	IP54 conforming to IEC 60529
IK stopnja zaščite	IK08 conforming to IEC 62262
