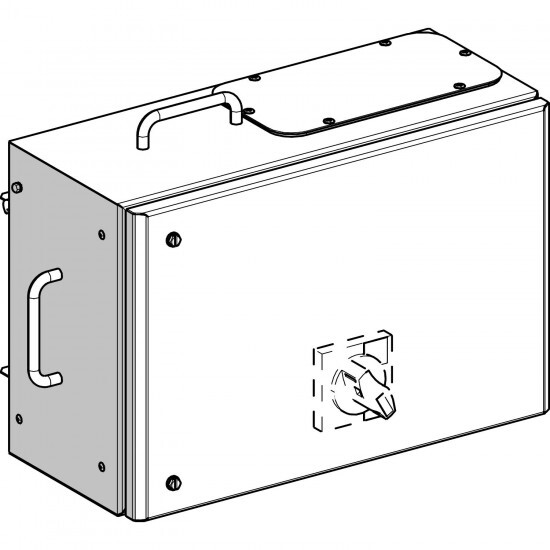

KSB160SM513 Schneider Electric

TAP OFF UNIT 160A 13 MODULES

Glavno
Serija izdelka	Canalis
Izdelek ali sestavni del	tap-off unit
Skupina izdelkov	Canalis
protection type	circuit breaker: NG125 circuit breaker: NG160
[Ie] rated operational current	160-160 A with a NG160 125-125 A with a NG125
Združljivost izdelkov	Canalis KS busbar trunkingplug-in Canalis KT busbar trunking with KS type plug-in
colour	white (RAL 9001)
Združljivost serije/obsega	KS busbar trunking KT busbar trunking
mounting mode	plug-in with fixed polarity
tap-off unit polarity	3L+PEN
Komplementarno
network frequency	50/60 Hz
Višina	342 mm
Teža izdelka	8.5 kg
[Ui] Nazivna izolacijska trdnost	400 V depending on protective device 500 V depending on protective device 690 V depending on protective device
[Uimp] rated impulse withstand voltage	6.8 kV
Širina	482 mm
Globina	246 mm
[Ue] rated operational voltage	230...690 V depending on protective device
standards	IEC 61439-6 IEC 61439-1
door opening side	right
electrical connection	tunnel terminal - ISO32 70-70 mm² flexible tunnel terminal - ISO32 70-70 mm² rigid
body material	metal
provided equipment	circuit breaker to be ordered separately
function available	circuit breaker
device application	medium power distribution
door opening size	625.5 mm
tap-off unit disconnection mode	By drawing out
Okolje
IP stopnja zaščite	IP55 conforming to IEC 60529
IK stopnja zaščite	IK08 conforming to IEC 62262
earthing system	TN-C
