81676 Schneider Electric
81676 Schneider Electric
Opis

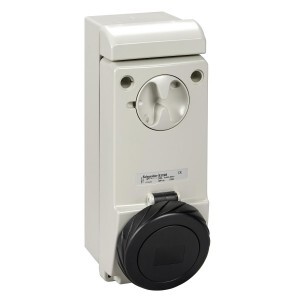

PratiKa industrial socket - 63 A - 3P + E - 100...130 V AC - IP67
Tehnične lastnosti
| Glavno | |
| network type | AC |
| Izdelek ali sestavni del | socket |
| product name | PratiKa socket |
| Skupina izdelkov | PratiKa |
| Opis polov | 3P + E |
| Kratko ime naprave | PratiKa socket |
| outlet standard | industrial |
| plug, socket category | low voltage |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 107 mm |
| Teža izdelka | 0.474 kg |
| Povezave - terminali | captive screws, completely loosened |
| mounting mode | panel-mounted |
| Kompatibilnostna koda | PratiKa socket |
| colour | grey (RAL 7035) |
| Širina | 108 mm |
| Globina | 113 mm |
| [Ue] rated operational voltage | 100...130 V |
| cable cross section | 6-25 mm² |
| contacts material | pins: stainless steel sleeves: nickel plated brass springs: stainless steel |
| plug, socket, control station shape | straight |
| [In] rated current | 63 A |
| base dimension | 100 x 107 mm |
| ground lug clockwise position | 4 h |
| plug, socket material | housing: self-extinguishing engineering polymer |
| voltage colour | yellow |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 35-35 °C ( 86400 s ) |
| IP stopnja zaščite | IP67 conforming to IEC 60529 |
| relative humidity | 50-50 % at 40-40 °C 70-70 % at 30-30 °C 90-90 % at 20-20 °C |
| IK stopnja zaščite | IK08 conforming to EN 62262 |
| Standardi | EN 60309-1 EN 60309-2 |
| fire resistance | 850 °C conforming to IEC 60695-2-11 |
