04459 Schneider
04459 Schneider
Opis

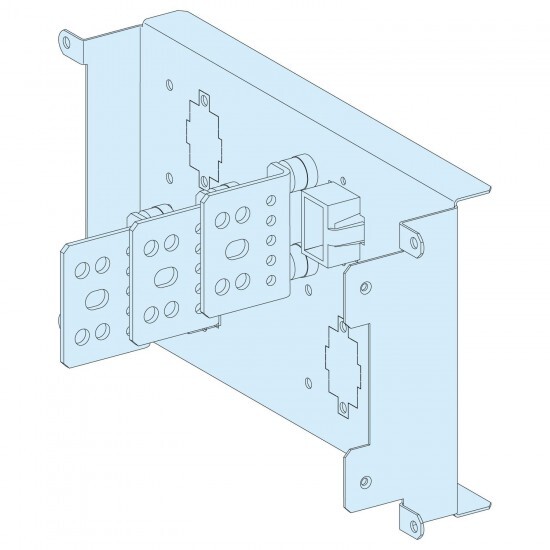

UNIVERSAL CONNECTION TRANSFERT IN DUCT 630A 3P
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma P |
| Izdelek ali sestavni del | connection transfer assembly |
| Skupina izdelkov | Prisma |
| Kategorija dodatkov/ločenih delov | current distribution accessory |
| Združljivost serije/obsega | Prisma P |
| Komplementarno | |
| Višina | 200 mm |
| Teža izdelka | 3.04 kg |
| Širina | 350 mm |
| surface finish | matt smooth |
| [In] rated current | 630 A |
| [Ie] rated operational current | 630 A |
| quantity per set | set of 1 |
| poles description | 3P |
| enclosure/cubicle description | cubicle - width 650 mm |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| installed device | Easypact: fixed CVS400 without earth leakage protection - control: toggle horizontal installation Compact: plug-in NSX630 with earth leakage protection - control: toggle horizontal installation Compact: drawout NSX400 with earth leakage protection - control: toggle horizontal installation Compact: drawout NSX630 with earth leakage protection - control: toggle horizontal installation Easypact: fixed CVS400 without earth leakage protection - control: direct front rotary handle horizontal installation Easypact: fixed CVS630 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX400 without earth leakage protection - control: motor mechanism horizontal installation Compact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: plug-in NSX400 without earth leakage protection - control: motor mechanism horizontal installation Compact: drawout NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation Easypact: fixed CVS630 without earth leakage protection - control: toggle horizontal installation Compact: drawout NSX400 without earth leakage protection - control: motor mechanism horizontal installation Compact: fixed NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX630 without earth leakage protection - control: motor mechanism horizontal installation Compact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: plug-in NSX630 without earth leakage protection - control: motor mechanism horizontal installation Compact: drawout NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation Compact: drawout NSX630 without earth leakage protection - control: motor mechanism horizontal installation Easypact: fixed CVS400 with earth leakage protection - control: toggle horizontal installation Easypact: fixed CVS400 with earth leakage protection - control: direct front rotary handle horizontal installation Easypact: fixed CVS630 with earth leakage protection - control: toggle horizontal installation Compact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation Easypact: fixed CVS630 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX400 with earth leakage protection - control: motor mechanism horizontal installation Compact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: plug-in NSX400 with earth leakage protection - control: motor mechanism horizontal installation Compact: drawout NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: drawout NSX400 with earth leakage protection - control: motor mechanism horizontal installation Compact: fixed NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX630 with earth leakage protection - control: motor mechanism horizontal installation Compact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation Compact: plug-in NSX630 with earth leakage protection - control: motor mechanism horizontal installation Compact: drawout NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation Compact: drawout NSX630 with earth leakage protection - control: motor mechanism horizontal installation Compact: plug-in NSX400 without earth leakage protection - control: toggle horizontal installation Compact: plug-in NSX630 without earth leakage protection - control: toggle horizontal installation Compact: drawout NSX400 without earth leakage protection - control: toggle horizontal installation Compact: drawout NSX630 without earth leakage protection - control: toggle horizontal installation Compact: plug-in NSX400 with earth leakage protection - control: toggle horizontal installation |
| enclosure/cubicle width | 650 mm 400 mm Prisma P cubicle Compact NSX400 with fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 without plug-in direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 without plug-in motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 without drawout toggle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX400 without drawout direct front rotary handle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX400 without drawout motor mechanism horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 without plug-in toggle horizontal 3P 1 direct 3 650 mm 400 mm Prisma P cubicle Compact NSX630 without fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 without fixed motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 without plug-in direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 without plug-in motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 with fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 without drawout toggle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 without drawout direct front rotary handle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 without drawout motor mechanism horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Easypact CVS400 with fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS400 with fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS630 with fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS630 with fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 with plug-in toggle horizontal 3P 1 direct 3 650 mm 400 mm Prisma P cubicle Compact NSX400 with fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 with fixed motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS400 without fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 with plug-in direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 with plug-in motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 with drawout toggle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX400 with drawout direct front rotary handle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX400 with drawout motor mechanism horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 with plug-in toggle horizontal 3P 1 direct 3 650 mm 400 mm Prisma P cubicle Compact NSX630 with fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 with fixed motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 with plug-in direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 with plug-in motor mechanism horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS400 without fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX630 with drawout toggle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 with drawout direct front rotary handle horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Compact NSX630 with drawout motor mechanism horizontal 3P 1 direct 6 650 mm 400 mm Prisma P cubicle Easypact CVS630 without fixed toggle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Easypact CVS630 without fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 without plug-in toggle horizontal 3P 1 direct 3 650 mm 400 mm Prisma P cubicle Compact NSX400 without fixed direct front rotary handle horizontal 3P 1 direct 4 650 mm 400 mm Prisma P cubicle Compact NSX400 without fixed motor mechanism horizontal 3P 1 direct 4 |
| cubicle-device connection | connection transfer assembly |
| busbar cross section | 32 x 6 mm |
| Okolje | |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 IEC 61439-1 |
