Opis

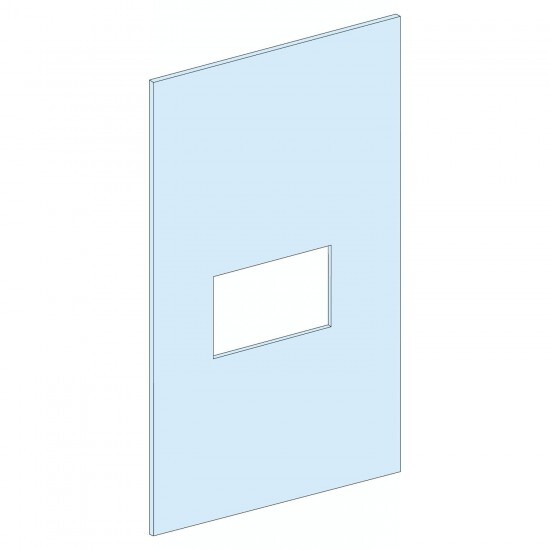

FRONT PLATE NSX/CVS 250 VERTICAL FIXED TOGGLE/ROTARY HANDLE W300 9M
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma G |
| Izdelek ali sestavni del | front plate |
| Skupina izdelkov | Prisma |
| Opis polov | 1 x 4P: mounting plate support: NSX100...160 vertical installation 1 x 4P: mounting plate support: NSX250 vertical installation 1 x 3P: mounting plate support: CVS100...160 vertical installation 1 x 4P: mounting plate support: CVS100...160 vertical installation 1 x 3P: mounting plate support: CVS250 vertical installation 1 x 4P: mounting plate support: CVS250 vertical installation 1 x 3P: mounting plate support: NSX100...160 vertical installation 1 x 3P: mounting plate support: NSX250 vertical installation |
| Kategorija dodatkov/ločenih delov | installation accessory |
| operating position | vertical |
| Združljivost serije/obsega | Prisma G duct Prisma Pack 250 Prisma P |
| installed device | Compact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation Compact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation Compact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation Compact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation Compact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation Compact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation Compact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation Compact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation |
| type of front plate | cut-out |
| Komplementarno | |
| Višina | 450 mm |
| Teža izdelka | 0.96 kg |
| colour | white (RAL 9001) |
| Širina | 300 mm |
| product certifications | ASEFA |
| standards | IEC 61439-2 IEC 61439-1 |
| Material | steel |
| surface finish | smooth matt |
| quantity per set | set of 1 |
| enclosure/cubicle description | floor-standing duct - width 300 mm wall-mounted duct - width 300 mm cubicle - width 400 mm depth 400 mm Pack enclosure - width 300 mm |
| connection position | front connection direct connection |
| number of vertical modules [50 mm] | 9 |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| enclosure/cubicle width | 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed toggle vertical 4P 1 direct 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed toggle vertical 4P 1 direct 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed toggle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed toggle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in toggle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in toggle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed direct front rotary handle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed direct front rotary handle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed motor mechanism vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without fixed motor mechanism vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in direct front rotary handle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in direct front rotary handle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in motor mechanism vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX100...160 without plug-in motor mechanism vertical 4P 1 front connection 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed toggle vertical 4P 1 direct 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed toggle vertical 4P 1 direct 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed toggle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed toggle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in toggle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in toggle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed direct front rotary handle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed direct front rotary handle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed motor mechanism vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without fixed motor mechanism vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in direct front rotary handle vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in direct front rotary handle vertical 4P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in motor mechanism vertical 3P 1 front connection 9 400 mm 400 mm Prisma P cubicle Compact NSX250 without plug-in motor mechanism vertical 4P 1 front connection 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Easypact CVS250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Easypact CVS250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma Pack 250 Pack enclosure Compact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma Pack 250 Pack enclosure Compact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma G floor-standing duct Compact NSX250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma G wall-mounted duct Compact NSX250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 300 mm Prisma Pack 250 Pack enclosure Compact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 300 mm Prisma Pack 250 Pack enclosure Compact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 |
| Okolje | |
| IK stopnja zaščite | IK07 conforming to EN/IEC 62262 |
