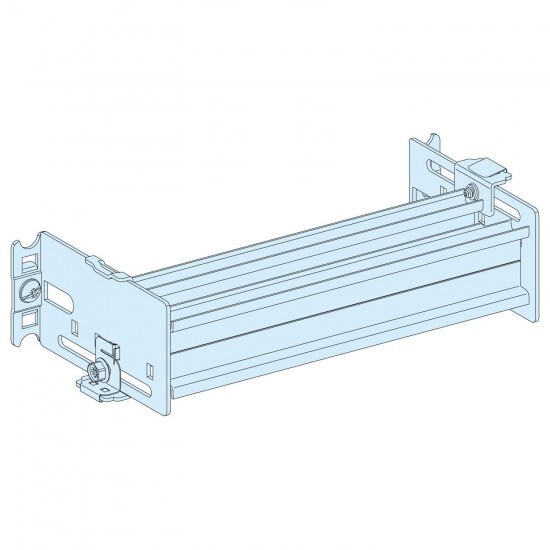

03113 Schneider
03113 Schneider
Opis
MOUNTING PLATE INF32 HZ/INF32-40 VERTIC ROT.HANDLE
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma G |
| Izdelek ali sestavni del | mounting plate |
| Skupina izdelkov | Prisma |
| Opis polov | 4 x 3P: fixed INF32 vertical installation 1 x 3P: fixed INF32 horizontal installation 1 x 4P: fixed INF32 horizontal installation 3 x 4P: fixed INF32 vertical installation 4 x 3P: fixed INF40 vertical installation 3 x 4P: fixed INF40 vertical installation |
| Kategorija dodatkov/ločenih delov | installation accessory |
| Združljivost serije/obsega | Prisma G |
| installed device | FuPact: fixed INF32 - control: extended rotary handle - vertical installation FuPact: fixed INF32 - control: extended rotary handle - horizontal installation FuPact: fixed INF40 - control: extended rotary handle - vertical installation |
| Komplementarno | |
| Višina | 150 mm |
| Teža izdelka | 0.9 kg |
| colour | white (RAL 9001) |
| surface finish | matt smooth |
| enclosure/cubicle description | floor-standing enclosure - width 600 mm wall-mounted enclosure - width 600 mm |
| number of vertical modules [50 mm] | 3 module(s): INF32, direct in 600 mm Widefloor-standing enclosure 3 module(s): INF32, direct in 600 mm Widewall-mounted enclosure 3 module(s): INF40, direct in 600 mm Widefloor-standing enclosure 3 module(s): INF40, direct in 600 mm Widewall-mounted enclosure |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure FuPact INF32 fixed extended rotary handle vertical 3P 4 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF40 fixed extended rotary handle vertical 3P 4 direct 3 40 mm 600 mm Prisma G floor-standing enclosure FuPact INF40 fixed extended rotary handle vertical 4P 3 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF40 fixed extended rotary handle vertical 4P 3 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF32 fixed extended rotary handle vertical 3P 4 direct 3 40 mm 600 mm Prisma G floor-standing enclosure FuPact INF32 fixed extended rotary handle horizontal 3P 1 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF32 fixed extended rotary handle horizontal 3P 1 direct 3 40 mm 600 mm Prisma G floor-standing enclosure FuPact INF32 fixed extended rotary handle horizontal 4P 1 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF32 fixed extended rotary handle horizontal 4P 1 direct 3 40 mm 600 mm Prisma G floor-standing enclosure FuPact INF32 fixed extended rotary handle vertical 4P 3 direct 3 40 mm 600 mm Prisma G wall-mounted enclosure FuPact INF32 fixed extended rotary handle vertical 4P 3 direct 3 40 mm 600 mm Prisma G floor-standing enclosure FuPact INF40 fixed extended rotary handle vertical 3P 4 direct 3 40 mm |
| Okolje | |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 |
