08896 Schneider
08896 Schneider
Opis

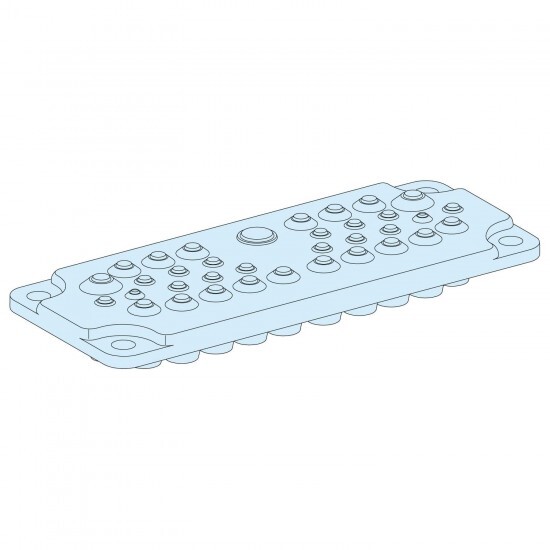

MEMBRANE GLANDPLATE 35 ENTRIES DIAM.5-32MM FOR REF 08871/08875/08876 G IP30+IP55
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma Plus System G |
| Izdelek ali sestavni del | gland plate |
| Skupina izdelkov | Prisma |
| Kategorija dodatkov/ločenih delov | enclosure accessory |
| Združljivost izdelkov | IP30 enclosure IP31 enclosure IP55 enclosure IP43 enclosure |
| IP degree of protection | IP55 |
| Združljivost serije/obsega | Prisma G enclosure |
| Komplementarno | |
| Teža izdelka | 0.28 kg |
| colour | light grey (RAL 7035) |
| Globina | 180 mm |
| type of gland plate | membrane |
| Material | insulated material |
| quantity per set | set of 1 |
| mounting location | top bottom |
| enclosure/cubicle description | wall-mounted enclosure - width 600 mm floor-standing enclosure - width 600 mm wall-mounted duct - width 300 mm floor-standing duct - width 300 mm |
| cable entry number | 4 diameter: 7-14 mm 8 diameter: 3-3 mm 1 diameter: 17-30 mm 4 diameter: 3-7 mm 4 diameter: 5-5 mm 10 diameter: 7-12 mm 10 diameter: 7-10 mm 2 diameter: 7-18 mm |
