03501 Schneider
03501 Schneider
Opis

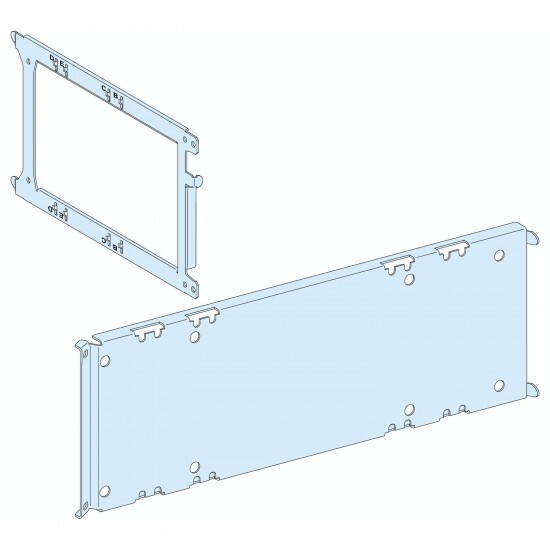

MOUNTING PLATE NS3200 INS-INV2500 FIXED VERTICAL IN WIDTH 650
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma P |
| Izdelek ali sestavni del | mounting plate |
| Skupina izdelkov | Prisma |
| Opis polov | 1 x 3P: fixed INS2000...2500 vertical installation 1 x 4P: fixed NS1600b vertical installation 1 x 3P: fixed NS2000...3200 vertical installation 1 x 4P: fixed NS2000...3200 vertical installation 1 x 4P: fixed INS2000...2500 vertical installation 1 x 3P: fixed INS630b...1600 vertical installation 1 x 4P: fixed INS630b...1600 vertical installation 1 x 3P: fixed INV2000...2500 vertical installation 1 x 4P: fixed INV2000...2500 vertical installation 1 x 3P: fixed INV630b...1600 vertical installation 1 x 4P: fixed INV630b...1600 vertical installation 1 x 3P: fixed NS1600b vertical installation |
| Kategorija dodatkov/ločenih delov | installation accessory |
| Združljivost serije/obsega | Prisma P |
| installed device | Compact: fixed INS2000...2500 - control: direct front rotary handle - vertical installation Compact: fixed INS630b...1600 - control: direct front rotary handle - vertical installation Compact: fixed INV2000...2500 - control: direct front rotary handle - vertical installation Compact: fixed INV630b...1600 - control: direct front rotary handle - vertical installation Compact: fixed NS1600b - control: toggle - vertical installation Compact: fixed NS2000...3200 - control: toggle - vertical installation |
| Komplementarno | |
| Višina | 200 mm |
| Teža izdelka | 2.9 kg |
| colour | white (RAL 9001) |
| surface finish | matt smooth |
| enclosure/cubicle description | cubicle - width 650 mm depth 400 mm cubicle - width 650 mm depth 600 mm |
| number of vertical modules [50 mm] | 16 module(s): INS2000...2500, front connection on adaptor in 650 mm Widecubicle 16 module(s): INS2000...2500, rear connection on adaptor in 650 mm Widecubicle 14 module(s): INS630b...1600, front connection on adaptor in 650 mm Widecubicle 16 module(s): INV2000...2500, front connection on adaptor in 650 mm Widecubicle 16 module(s): INV2000...2500, rear connection on adaptor in 650 mm Widecubicle 14 module(s): INV630b...1600, front connection on adaptor in 650 mm Widecubicle 14 module(s): NS1600b, front connection on adaptor in 650 mm Widecubicle 16 module(s): NS2000...3200, front connection on adaptor in 650 mm Widecubicle |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| enclosure/cubicle width | 650 mm 400 mm Prisma P cubicle Compact INS2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 262.5 mm 650 mm 600 mm Prisma P cubicle Compact INV2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INV630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INV630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 262.5 mm 650 mm 400 mm Prisma P cubicle Compact NS1600b fixed toggle vertical 3P 1 front connection on adaptor 14 212.5 mm 650 mm 400 mm Prisma P cubicle Compact NS1600b fixed toggle vertical 4P 1 front connection on adaptor 14 212.5 mm 650 mm 600 mm Prisma P cubicle Compact NS2000...3200 fixed toggle vertical 3P 1 front connection on adaptor 16 212.5 mm 650 mm 600 mm Prisma P cubicle Compact NS2000...3200 fixed toggle vertical 4P 1 front connection on adaptor 16 212.5 mm 650 mm 400 mm Prisma P cubicle Compact INS2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 262.5 mm 650 mm 600 mm Prisma P cubicle Compact INS2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 262.5 mm 650 mm 600 mm Prisma P cubicle Compact INS2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INS630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INS630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INV2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 262.5 mm 650 mm 400 mm Prisma P cubicle Compact INV2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 262.5 mm 650 mm 600 mm Prisma P cubicle Compact INV2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 262.5 mm |
| Okolje | |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 |
