NSYSPS3100SD Schneider Electric
NSYSPS3100SD Schneider Electric
Opis

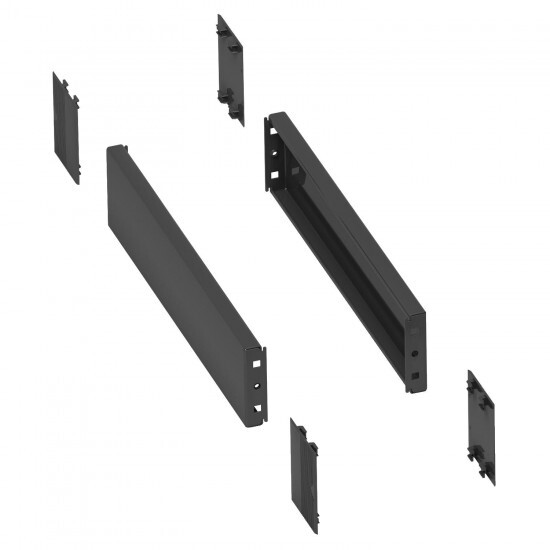

2 side panels for plinth. 300x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | plinth side panel |
| Skupina izdelkov | Spacial |
| Aplikacija naprave | multi-purpose |
| device composition | fixing elements 4 corner cover 2 side panel |
| Kategorija dodatkov/ločenih delov | enclosure accessory |
| Združljivost serije/obsega | Spacial SD Spacial S3D Spacial CRN |
| mounting support | front plinth |
| Komplementarno | |
| Višina | 100 mm |
| colour | grey (RAL 7022) |
| Širina | 300 mm nominal: |
| Globina | 300 mm |
| surface finish | epoxy-polyester powder |
| Način pritrjevanja | by screws |
| Okolje | |
| IP stopnja zaščite | IP30 (complete plinth) |
| IK stopnja zaščite | IK10 (resistance to external mechanical impacts) |
