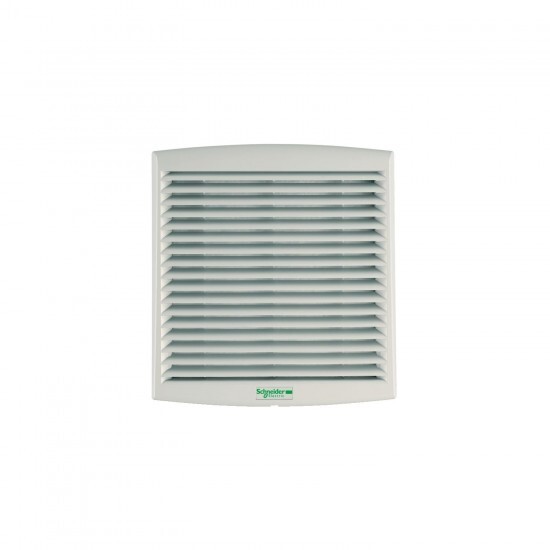

NSYCVF85M230PF Schneider Electric
NSYCVF85M230PF Schneider Electric
Opis
ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | fan |
| product name | ClimaSys CV |
| Skupina izdelkov | ClimaSys |
| [Us] Nazivna napajalna npetost | 175...253 V |
| Druge vhodne napetosti | 230 V 50/60 Hz |
| air flow | free flow rate with standard filter: 85 m3/h at 50 Hz free flow rate with standard filter: 98 m3/h at 60 Hz |
| type of ventilation filter | standard |
| Komplementarno | |
| Višina | 170 mm external: |
| Teža izdelka | 0.78 kg |
| Povezave - terminali | Faston connector |
| colour | outlet grille: grey (RAL 7035) |
| Širina | 150 mm external: |
| Globina | 62 mm external: |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| [In] rated current | 0.121-0.121 A 50 Hz 0.097-0.097 A 60 Hz |
| noise level | 46-49 dB |
| ambient air temperature for operation | -20-60 °C |
| IP degree of protection | IP54 |
| device composition | 1 axial motor 2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template 1 power cord |
| ambient air temperature for storage | -40-70 °C |
| power range | 15 W 60 Hz 17 W 50 Hz |
| condition of use | flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided outside temperature must be 5 °C lower than inside temperature |
| Dimenzije izreza | 125 x 125 mm |
| maximum pressure | 50 Pa flow rate 0 m³/h |
| bearing type | ball |
