NSYCMUMA50 Schneider Electric
NSYCMUMA50 Schneider Electric
Opis

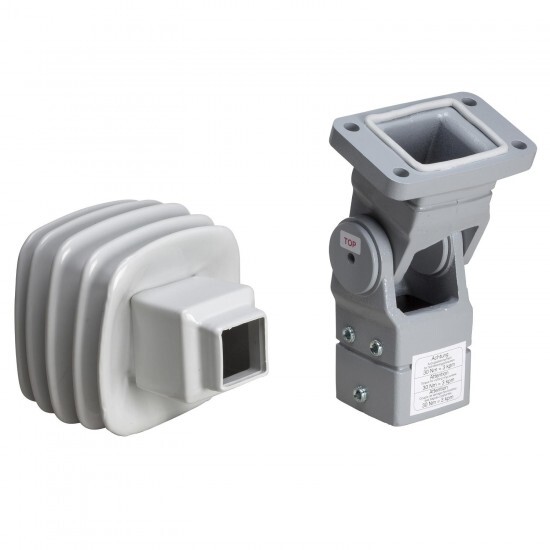

Articulated fixing, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | fixing on support |
| Skupina izdelkov | Spacial |
| Aplikacija naprave | multi-purpose |
| device composition | fixing elements 1 bellow 1 fixing and rotating bracket |
| Kategorija dodatkov/ločenih delov | mounting accessory |
| Količina na set/komplet | set of 1 |
| Združljivost serije/obsega | Spacial S3CM |
| Lokacija montaže | between tube and support |
| mounting support | option of passing cables through the inside for 50 mm square tube |
| Komplementarno | |
| Višina | 148 mm |
| Teža izdelka | 4.6 kg |
| colour | bracket: grey (RAL 7040) bellow: grey (RAL 7035) |
| Širina | 148 mm |
| Globina | 210 mm |
| Material | moulded steel |
| surface finish | epoxy-polyester powder |
| Način pritrjevanja | by fixing element - screw type M12 - horizontal tube location by 4 screws - screw type M11 - on support location |
| permanent permissible load | 4.35 kg |
| operating angle | 170 ° |
