NSYCEWX6K Schneider
NSYCEWX6K Schneider
Opis

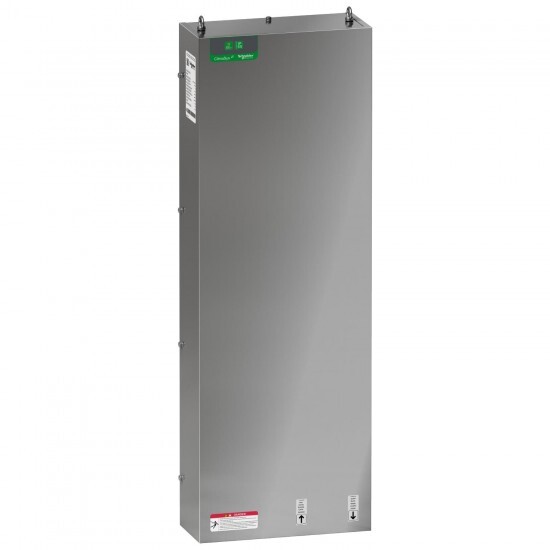

ClimaSys Exchanger air-water 6000W sides of enclosure
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | air-water exchanger |
| product name | ClimaSys CE |
| Skupina izdelkov | ClimaSys |
| cooling power | 6000 W |
| Lokacija montaže | sides of enclosure |
| Komplementarno | |
| Višina | 1500 mm external: |
| Teža izdelka | 40 kg |
| control type | thermostat |
| colour | grey (RAL 7035) |
| Širina | 450 mm external: |
| Globina | 163 mm external: |
| Material | stainless steel |
| [In] rated current | 0.71 A |
| protection type | thermal protection: T 2 A |
| input voltage | 230 V 50/60 Hz |
| power consumption in W | 160 W |
| noise level | 69 dB conforming to EN/ISO 3746 |
| pressure | 8 bar for water |
| air flow | external circuit: 1450 m3/h |
| temperature setting range | 20-46 °C |
| ambient air temperature for operation | 1-70 °C outside the enclosure: 20-60 °C inside the enclosure: |
| controlled fluid | water |
| fluid connection type | G 1/2 (female) |
| pressure drop | 0.5 bar |
| water flow | internal circuit: 800 l/h |
| Okolje | |
| IP stopnja zaščite | IP55 conforming to IEC 60529 (on the internal circuit) IP55 conforming to IEC 60529 (on the external circuit) |
| Certifikati izdelkov | CE |
| Standardi | EN 60204-1 EN 60335-2-40 EN/ISO 12100 EN 60335-1 |
| directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive 2006/42/EC - machinery |
