Opis

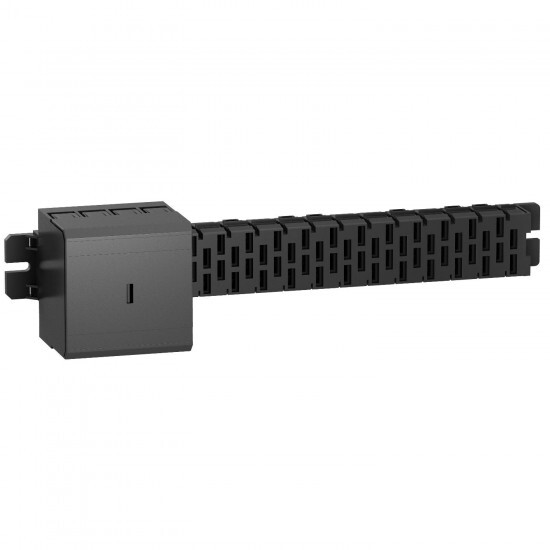

BUSBAR TETRA 160A LG 452
Tehnične lastnosti
| Glavno | |
| Serija izdelka | AK5 |
| network type | AC |
| Izdelek ali sestavni del | busbar |
| product name | HK |
| Skupina izdelkov | Linergy |
| Aplikacija naprave | distribution |
| [Ie] rated operational current | 160 A at 35 °C |
| [Ue] rated operational voltage | 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA 600 V (plugging-in and unplugging, with supply switched off) conforming to UL 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1 |
| number of tap-offs | 18 |
| enclosure/cubicle width | 800 mm |
| bar length | 452 mm |
| number of conductors | 4 |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Teža izdelka | 0.9 kg |
| Povezave - terminali | connector 2.5-70 mm² flexible with cable end connector 2.5-70 mm² rigid |
| [Ui] Nazivna izolacijska trdnost | 600 V conforming to CSA 600 V conforming to UL 690 V conforming to IEC 60439-1 |
| Širina | 80 mm |
| Globina | 84 mm |
| tightening torque | 10 N.m |
| protection type | aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A |
| mounting position | vertical mounting using side stop AK5BT01 on mounting plates AK5PA horizontal mounting |
| bar width | 40 mm |
| flame retardance | V0 conforming to UL 94 |
| peak current | 25 kA |
| I²t on activation | 10000000 A².s |
| Okolje | |
| IP stopnja zaščite | IPxx B conforming to IEC 60529 |
| Certifikati izdelkov | UL CSA DNV LROS (Lloyds register of shipping) |
| Standardi | IEC 60439 |
| fire resistance | 850 °C conforming to IEC 60695 |
