MIP82104 Schneider Electric
MIP82104 Schneider Electric
Opis

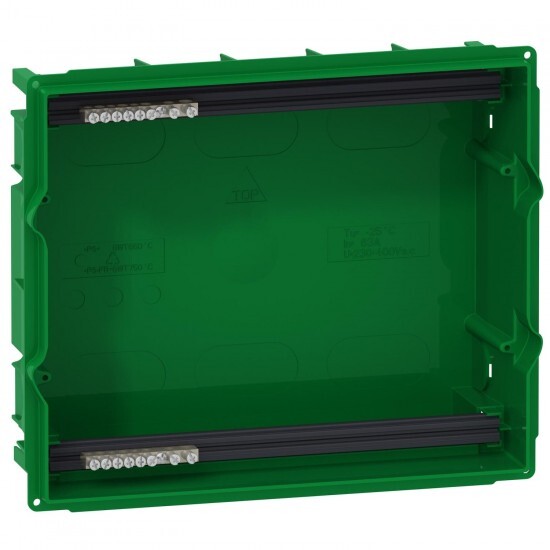

Mini Pragma enclosure base - 1 x 4 modules - for flush mounting
Tehnične lastnosti
| Glavno | |
| [In] rated current | 50 A |
| Serija izdelka | Mini Pragma |
| Izdelek ali sestavni del | base |
| Kategorija dodatkov/ločenih delov | enclosure accessory |
| number of horizontal rows | 1 |
| number of 18 mm modules per row | 4 |
| number of terminal blocks | 1 earth (screw) with 4 outgoers 1 neutral (screw) with 4 outgoers |
| terminal block function | earth / neutral |
| Komplementarno | |
| Višina | 228 mm wall: |
| 9 mm pitches | 2 |
| Širina | 126 mm wall: |
| Globina | 80 mm wall: 18 mm outside: 98 mm total: |
| cable entry | pre-cutted holes |
| enclosure material | back part: technoplastic |
| total number of 18 mm modules | 4 |
| enclosure mounting | flush |
| distribution block outgoers | 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| IK stopnja zaščite | IK07 |
| Standardi | EN 50102 IEC 60695-2-11 |
| fire resistance | back part: 650 °C |
| market segment | small commercial residential |
