LGY116013 Schneider Electric
LGY116013 Schneider Electric
Opis

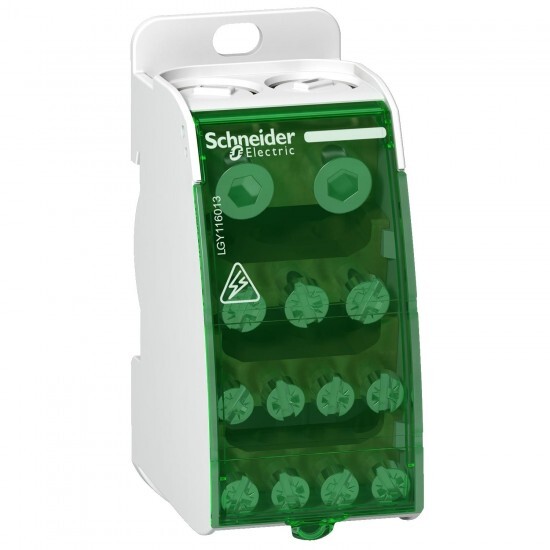

Linergy DS - screw distribution block 1P - 160A - 13 holes
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Linergy |
| Izdelek ali sestavni del | distribution block |
| product name | Linergy DS |
| Skupina izdelkov | Linergy |
| Komplementarno | |
| Višina | 85 mm |
| mounting support | DIN rail |
| 9 mm pitches | 4 |
| Teža izdelka | 0.168 kg |
| Povezave - terminali | supply: screw terminal 2 cable(s) 25-70 mm² rigid supply: screw terminal 2 cable(s) 16-50 mm² flexible with cable end distribution: screw terminal 3 cable(s) 2.5-25 mm² rigid distribution: screw terminal 3 cable(s) 1.5-16 mm² flexible with cable end distribution: screw terminal 8 cable(s) 1.5-16 mm² rigid distribution: screw terminal 8 cable(s) 1.5-10 mm² flexible with cable end |
| [Ui] Nazivna izolacijska trdnost | 500 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| colour | white (RAL 9003) |
| Širina | 36 mm |
| Globina | 50.5 mm |
| tightening torque | distribution: 2-2 N.m flat screwdriver 7.5 mm distribution: 2-2 N.m PZ2 screwdriver 7.5 mm distribution: 2-2 N.m flat screwdriver 5.8 mm distribution: 2-2 N.m PZ2 screwdriver 5.8 mm supply: 9-9 N.m flat screwdriver 12 mm supply: 9-9 N.m PZ2 screwdriver 12 mm |
| [Ue] rated operational voltage | 230 V AC Ph/N 440 V AC Ph/Ph |
| product compatibility | Spacial enclosures |
| [In] rated current | 160 A at 40 °C |
| [Ie] rated operational current | 160 A at 40 °C |
| [Icw] rated short-time withstand current | 8.4 kAfor 1 s |
| [Ipk] rated peak withstand current | 36 kA |
| range compatibility | Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys |
| distribution block outgoers | 13 holes |
| poles description | 1P |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| Stopnja onesnaženosti | 3 |
| overvoltage category | III |
| Standardi | EN/IEC 60947-7-1 EN/IEC 61439-1 |
| dielectric strength | 2500 V |
