NSYDLCR24 Schneider Electric
NSYDLCR24 Schneider Electric
Opis

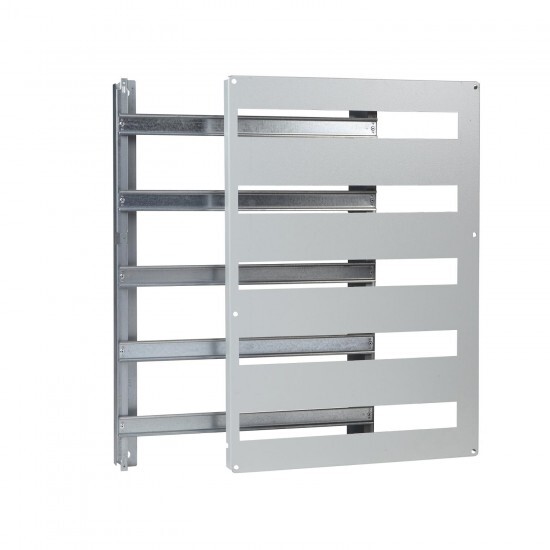

Modular chassis DLCR type for SPACIAL WM steel enclosure, 24 modules, H400xW300
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | chassis |
| Skupina izdelkov | Spacial |
| Aplikacija naprave | modular distribution application multi-purpose |
| Kratko ime naprave | DL |
| device composition | 1 chassis structure 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² 1 front panel 2 35 mm DIN rail |
| Kategorija dodatkov/ločenih delov | mounting accessory |
| Količina na set/komplet | set of 1 |
| Združljivost serije/obsega | Spacial S3X Spacial CRN |
| Lokacija montaže | front of enclosure |
| Komplementarno | |
| Višina | 355 mm |
| colour | front panel: grey (RAL 7035) |
| Širina | 255 mm |
| Globina | 110 mm |
| Material | steel |
| surface finish | polyester powder |
| Način pritrjevanja | by fixing element - on back with supports location |
| total number of 18 mm modules | 24 |
| number of horizontal rows | 2 |
| adjustment | in height from 40 to 85 mm for DIN rail |
| number of cut-out | 2 cut-outs |
| type of front plate | plain and cut-out plates |
